What are the main parts of synchronous motor?

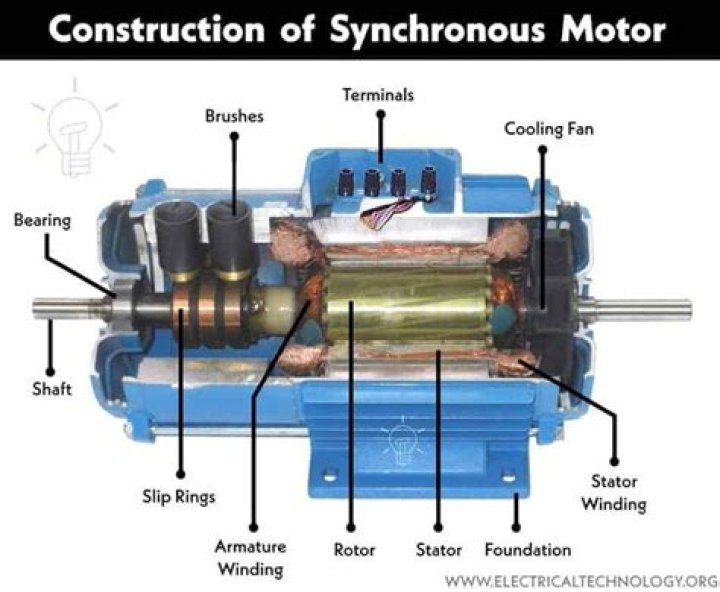

A synchronous motor is generally made up of two parts, a stator the stationary part of the machine that carries the armature winding in which the voltage is generated, and a rotor the rotating part of the machine that produces the main field flux.
How does a synchronous motor start up?
The motor is first started as a slip ring induction motor. The resistance is gradually cut-off as the motor gains speed. When it achieves near synchronous speed, DC excitation is given to the rotor, and it is pulled into synchronism. Then it starts rotating as a synchronous motor.
How do you start a 3 phase synchronous motor?
The different methods used to start a synchronous motor are :
- Using Pony Motors : By using the small pony motors like a small induction motor, we can start the synchronous motor.
- Using Small D.C. Machine :
- Using Damper Winding :
- As a Slip Ring Induction Motor ( Synchronous Induction Motor ) :
What are synchronous motors used for?
Synchronous motors are normally used in applications in which a constant and precise speed is required. Typical applications of these low power motors are positioning machines. They are also used in robot actuators. Synchronous motors are also used in ball mills, watches, record players, and turntables.
How does a synchronous motor operate?
The principle of operation of a synchronous motor can be understood by considering the stator windings to be connected to a three-phase alternating-current supply. A direct current in a p-pole field winding on the rotor will also produce a magnetic field rotating at rotor speed.
Which type of rotor is used in synchronous motor?
Cylindrical, round rotors, (also known as non salient pole rotor) are used for up to six poles. In some machines or when a large number of poles are needed, a salient pole rotor is used. The construction of synchronous motor is similar to that of a synchronous alternator.
What is the principle of synchronous motor?
The principle of operation of a synchronous motor can be understood by considering the stator windings to be connected to a three-phase alternating-current supply. The effect of the stator current is to establish a magnetic field rotating at 120 f/p revolutions per minute for a frequency of f hertz and for p poles.
Where are synchronous motors used?
In the fractional horsepower range, most synchronous motors are used where precise constant speed is required. These machines are commonly used in analog electric clocks, timers and other devices where correct time is required. In higher power industrial sizes, the synchronous motor provides two important functions.
What are V and inverted V curves of synchronous motor?
What is V Curve and inverted v curve? The graphical representation of armature current Ia vs field current If is called V-curve since the final view looks like English letter V. At the same time the power factor vs field current is called inverted V-curve of a synchronous motor.
