Why do my speaker wires have 4 wires?
So, why do speakers have 4 terminals? Speakers have 4 terminals to allow for bi-wiring connections. Speakers with 4 terminals offer split connections, which creates two sections. Compared to speakers that have 2 terminals, the varieties that have 4 are capable of bi-wiring.
How do you wire 4 terminal speakers?
Steps on How to Wire Speakers with 4 Terminals
- Step 1: Make sure that the entire system of your speaker is powered OFF.
- Step 2: Carefully remove the bi-wire bridges from the speaker.
- Step 3: Each amplifier channel should be connected to the respective speaker section.
Can 4 conductor speaker wire be used to connect a pair of speakers?
Yes, you can use 4 conductor speaker wire to connect a pair of speakers that each only have 1 pair of connections.
What is 4 conductor wire used for?
4-conductors are most often used to send an amplified stereo signal to two speakers which are in close proximity to one another or to a stereo volume control.

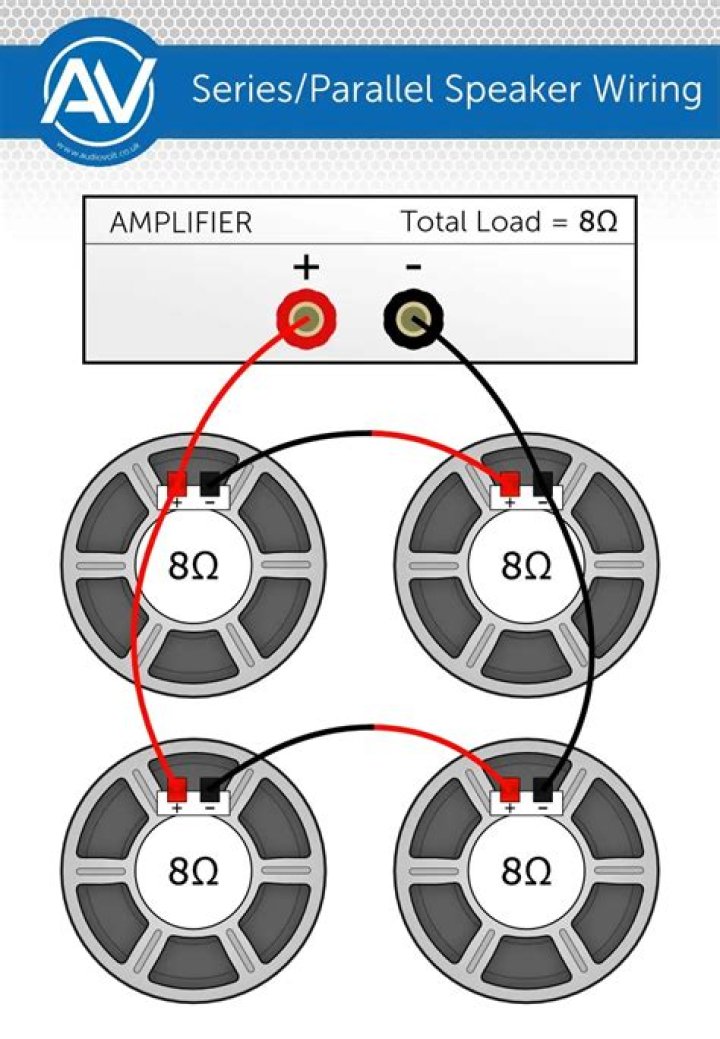

How do I connect 4 speakers to a 2 channel amp?
Connect wire from the negative terminal of left channel to the negative terminal of the first speaker. Then connect wire from the positive terminal of left channel to the positive terminal of first speaker. In this way corresponding terminals of left channel and first speaker will be connected to each other.
How do you connect 14 4 speaker wire?
- Run from the volume control or amp to closest first speaker. leave a 4 foot loop.
- Make sure you check signal flow.
- use electrical tape to seal up exposed wiring.
- Add clear silicon to binding posts after wire connection to keep out moisture.
- run wire to other speaker which will be the end of wire.
What is 4 core speaker cable used for?
4 Way Flat Speaker Cable Our 4 way flat speaker cables are suitable for use within low resistance pathways for speaker, high end amplifier, and audio visual installations. Their flat design makes them ideal for hiding under carpet.
What is the difference between CL2 and CL3 wire?
The difference between the two is that CL2 is rated for up to 150 volts while CL3 is rated for up to 300 volts. (NEC 725.71 F) According to NEC 725.2, CL2 offers some protection from electric shock while CL3 offers a bit more because it is rated to carry more voltage.
What type of wire has 4 wires?
A 4-wire circuit will have a red wire, black wire, white wire and a ground wire. The ground wire can be green or bare (without insulation). A 3-wire circuit only has black, white and ground wires.
