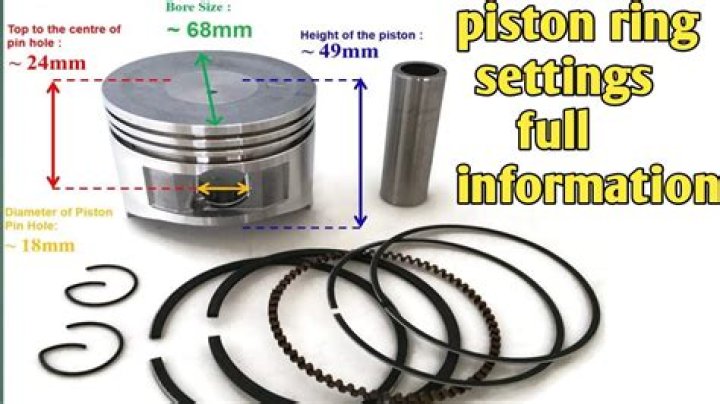

Which way do piston rings face?
Most top compression rings have a dot on the surface that indicates the side that should face upward when installed. A ring that is installed upside down will lead to excessive oil consumption. Finally, after all the rings are installed, rotate them around to ensure that they move freely within the grooves.
How do you tell the top and bottom of a piston ring?
When you first open the box, you will see that the tabs say “1”, “2” or “3” to show which groove the rings are. Once you’ve removed the rings from the box, you’ll see that the 2nd groove ring has a dot on the top and an inside bevel at the bottom.
How do I know if my piston rings are bad?
When drivers notice excessive oil consumption, white or gray exhaust smoke, poor acceleration, and/or overall loss of power or poor engine performance, they may be seeing signs of worn piston rings.
Do piston rings come pre gapped?
ET piston rings come pre-gapped, however, it is always best practice to check your end gap before installation. We recommend a minimum of . 0035” per inch of cylinder diameter. Be sure to check your end gap at the bottom of the cylinder, below the ring travel area.
Which ring goes on first on a piston?
Carefully spread each ring over the piston and install in correct groove. Start with the lower ring first to prevent passing over a previously installed ring. For spring tensioned oil rings, oil and install the spring first, then carefully install the ring over the spring with the spring joint opposite the ring joint.
Do piston rings have top and bottom?
Rings having a “pip” mark or dot on the side of the ring must always be installed with the “pip” mark or dot toward the top of the piston. There are two styles of torsional rings with inside bevels, top inside bevel and bottom inside bevel.
Are pistons marked?
These markings are mainly for internal use during manufacturing purposes, as they are not purposed to indicate the direction the piston should be installed. Some pistons may have a laser marking on the crown of the piston to indicate which direction the piston should be installed.
How can you tell if a piston is forged?
Hypers usually have the same appearance as a cast piston whereas the non machined areas are grainy looking. The best side to look at is the bottom of the piston. The forgings generally have a very smooth compacted surface with slight draw lines on the inner skirts.
Will a compression test show bad rings?
Cylinder compression tests are performed to identify any cylinders that have poor compression. If a cylinder has low compression, perform a wet compression test to indicate whether it’s a bad valve, head gasket, or worn piston rings causing the problem.
How do I know if I need oversize piston rings?
For instance a 4″ ring should have a minimum gap of . 014″. Ring gap of more than . 008″ per inch of cylinder bore indicates an oversize cylinder and oversize rings may want to be considered.
Where do you put the PIP mark on a piston?
Rings with a groove in the outside diameter and a “pip” mark or dot on the side must be installed with the groove toward the bottom of the piston and pip mark towards the top of the piston. It is a good idea after installing all rings on the pistons to recheck each ring on each piston for correct installation.
Which is the top ring on a piston ring?
When you first open the box, you will see that the tabs say “1”, “2” or “3” to show which groove the rings are. Once you’ve removed the rings from the box, you’ll see that the 2 nd groove ring has a dot on the top and an inside bevel at the bottom.
Do you need to mark the orientation of a piston?
Most pistons will come with an arrow or some sort of marking to illustrate the required piston orientation, but it is always good to verify this information, especially if you are using an asymmetrical piston configuration. These marking can differ depending on the application, piston design, and installed orientation of the engine.
How are the faces of the Pistons broken down?
When pistons are designed, the face of the piston can be broken down into four areas—top, bottom, left, and right. While this may seem like an overly simple concept, overlooking something as basic as installing the pistons in the correct orientation can wreak havoc on an engine in the blink of an eye.
How are the piston rings on a car determined?
Top, middle and bottom piston rings must seal the burning of fuel on top of the cylinder, lubricate the cylinder walls, and clean up extra oil left behind. Because they are slowly becoming smaller and thinner than ever, how to determine piston ring size depends on who you talk to and how you plan to drive your car.
How do you measure the gap between a piston ring?
Gauge the gaps of piston rings with a new or old ring in place using a feeler gauge to measure the distance in between the ring gap and the ring when seated against the other gap wall. Determine the size of the space behind the ring, between the ring groove base and the back of the piston ring.
Most pistons will come with an arrow or some sort of marking to illustrate the required piston orientation, but it is always good to verify this information, especially if you are using an asymmetrical piston configuration. These marking can differ depending on the application, piston design, and installed orientation of the engine.
When pistons are designed, the face of the piston can be broken down into four areas—top, bottom, left, and right. While this may seem like an overly simple concept, overlooking something as basic as installing the pistons in the correct orientation can wreak havoc on an engine in the blink of an eye.
