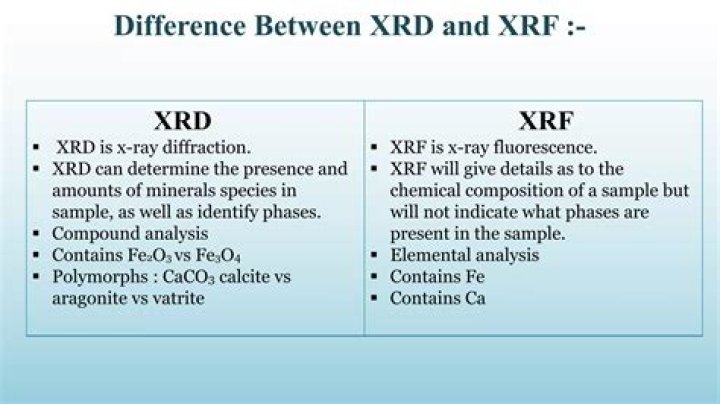

Which is better XRD or XRF?
What is the difference between XRD and XRF? XRD can determine the presence and amounts of minerals species in sample, as well as identify phases. XRF will give details as to the chemical composition of a sample but will not indicate what phases are present in the sample.
What is used for XRD?
X-ray diffraction analysis (XRD) is a technique used in materials science to determine the crystallographic structure of a material. XRD works by irradiating a material with incident X-rays and then measuring the intensities and scattering angles of the X-rays that leave the material [1].
What are the limitations of XRD?
XRD Limits XRD also has size limitations. It is much more accurate for measuring large crystalline structures rather than small ones. Small structures that are present only in trace amounts will often go undetected by XRD readings, which can result in skewed results.
What is the difference between Pxrd and XRD?
Crystals considered to be a powder when studied by XRD behave as single crystals in ED. While PXRD provides only one-dimensional information where diffraction peaks with similar d values overlap, ED provides three-dimensional information with no peak overlap.
What is difference between XRD and XRD?
The E-RADIX token is the wrapped representation of XRD on Ethereum, with the ticker eXRD. Purpose: Just as wBTC allows for a wrapped form of Bitcoin to be used in Ethereum’s DeFi ecosystem, eXRD allows for a wrapped form of Radix’s XRD token to be used in Ethereum’s DeFi ecosystem.
Is XRD surface sensitive?
XRD examines the crystallinity of a sample. X-ray photoelectron spectroscopy (XPS) is a surface sensitive technique or normally called ESCA ( (Electron Spectroscopy for Chemical Analysis) ), used to study the electronic states and chemical composition of the surface of a sample.
What elements can XRD detect?
X-ray diffraction is useful for evaluating minerals, polymers, corrosion products, and unknown materials. In most cases, the samples analyzed at Element are analyzed by powder diffraction using samples prepared as finely ground powders.
How do you read an XRD graph?
To check the nature of the materials using XRD patterns, you have to look the nature of Bragg’s peaks appearing in the XRD pattern. If you get a very broad humped peak, then the material will be amorphous with short range ordering. If you get sharp peaks ii the XRD pattern, then the material is crystalline.
Why some peaks have higher intensity in XRD pattern?
Like I said, the intensity of your peaks will depend upon your crystal structure and whether or not it was grown well. Intensity is proportional to the number of scatterers per unit area of a given atomic plane and therefore the peak intensities in an XRD experiment will vary.
What is diffraction peak?
The position of the diffraction peaks are determined by the distance between parallel planes of atoms. • Bragg’s law calculates the angle where constructive interference. from X-rays scattered by parallel planes of atoms will produce a diffraction peak. – In most diffractometers, the X-ray wavelength λ is fixed.
