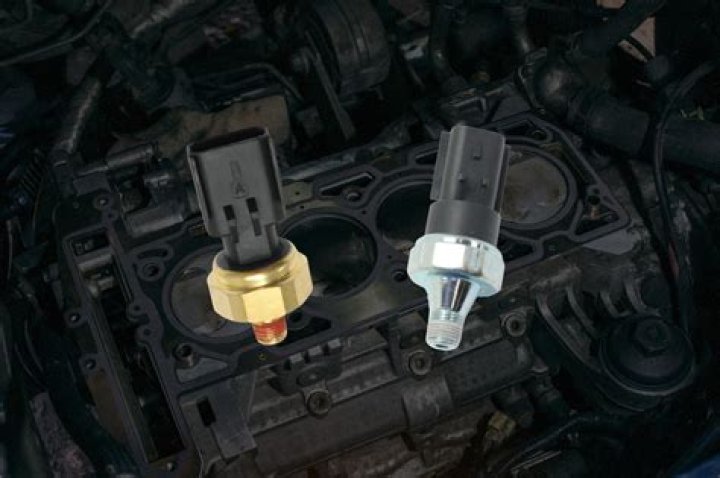

Where is the oil pressure sender switch?
Find the oil sending unit, which will be screwed into the engine block near the oil filter, with a single wire attached to it. Turn the vehicle’s ignition switch to the “on” position, with the engine “off.”
What happens when oil pressure switch fails?
The Oil Pressure Light is on If the Low Oil Light comes on, but you check the oil in the engine and it’s at a good level, then a faulty oil pressure sensor may be to blame. When this sensor goes bad, it will start to give inaccurate readings. After the readings fall out of specification, a warning light is set.
How do you check oil pressure sender?
If the sensor, or sending unit as some call it, is to blame, it can be easily tested.
- Insert the key into the ignition, and turn the key to the accessory setting. The engine should not be running.
- Look at the oil gauge on the dashboard. Unplug the wire that is connected to the sending unit, if the gauge is at zero.
How does a single wire oil pressure switch work?
A single pin oil pressure switch has two connections – one on the pin and the other through the body to the engine block. This connection through the body of the switch to the engine block acts as an earth connection. The pin then changes state. Normally the circuit is closed when the oil pressure is low.
Can I drive with a faulty oil pressure sensor?
Is it ok to drive with a bad oil pressure sensor? No. It is not safe driving with a bad oil pressure sensor. It will often cause your check engine light to illuminate, even though there isn’t necessarily anything wrong with your car.
What is normal oil pressure?
The unit of measurement is either PSI or Bar. The ideal oil pressure varies depending on the car brand and model, but generally, the ideal oil pressure is between 25-65 PSI. A PSI over 80 is usually considered too high for the engine to properly be protected from damage.
Can a bad oil pressure sensor cause a no start?
On older model vehicles, an oil pressure switch will send a signal to the oil pressure light. This warning light comes on when the car is cranked but goes off as the pressure builds. The oil pressure switch on newer model vehicles will signal its computer, which can cause a car not to start if it has low oil pressure.
