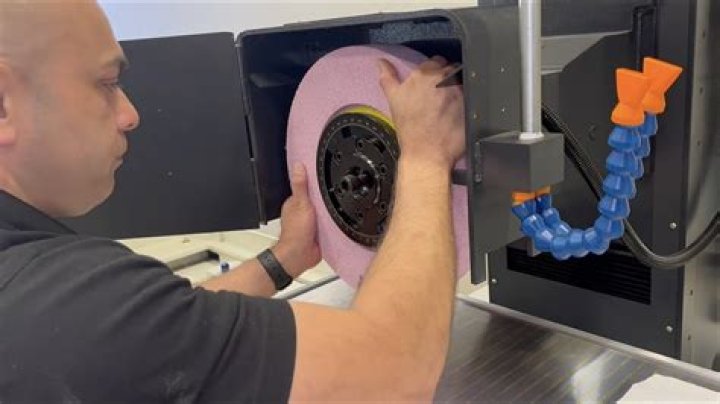

When replacing a grinding wheel What must you do?
- Step 1: Safety first. Ensure that the bench grinder is unplugged from the main source.
- Step 2: Get to know your tool.
- Step 3: Eliminate any obstruction.
- Step 4: Detach the wheel.
- Step 5: Attach the new wheel.
- Step 6: Test the Machine.
When should the grinding disc be replaced?
Never grind with the portable disc grinder in an area which houses flammable materials or combustible gases. 6. Replace the grinding disk when it becomes worn to half its original diameter.
When replacing a grind wheel on a bench grinder what inspections should be confirmed before turning the machine on?
Ensure work area and floor are clean. Before turning on the power, the operator should turn the wheel by hand to check for appropriate wheel clearance. Warn all persons to stay clear of the area where the wheel is used. Stand to one side and test the wheel.
Do grinding discs need replaced?
Cut-off wheels and grinding wheels should not be used past their expiration dates, and that’s if they’ve been properly stored and handled. Mishandling or storing discs in certain conditions might lead discs to be discarded earlier.
How do you know if a grinding wheel is fractured?
The wheel passes the test if it gives a clear metallic tone when tapped at all four points. If the wheel sounds dead at any of the four points, it is cracked.
What is a bench grinder good for?
The bench grinder is the undergraduate philosophy major of the workshop: a machine that’s obvious, abrasive, and designed to grind every item it encounters to an attenuated shell of its former self. Depending on which wheel you add, a bench grinder can shape, sharpen, buff, polish, or clean just about any metal object.
Do grinding wheels wear out?
Like any cutting tool, grinding wheels see wear and tear over time, which can lead to poor surface finishes and part quality. Using dressing throughout the grinding process is important to consistently produce parts with the required size and surface finish.
How long do grinding discs last?
1 – Cutting and Grinding Discs Have Expiry Dates. Usually expressed as a month and year, such as 03/2018, these expiry dates are printed to comply with the manufacturing regulation, EN12413:2007+A1. This date is generally printed on the centre ring and is at a maximum three years from the manufacture of the disc.
What is the maximum gap between a bench grinder grinding wheel?
1/6 inch
The grinder tool rest gap is not larger than 1/6 inch. No chips, cracks or breaks are present.
Do angle grinder discs go out of date?
Yes, they do! You’ll usually see an expiry date printed on the centre ring of the disc, formatted in month and year (eg. 03/2022). Smaller or ringless discs may have the date printed on the packaging, disc label or even on the disc itself, and will be a maximum of 3 years from their manufacturing date.
How do you inspect a grinding wheel for damage or cracks?
Grinding wheels must be inspected and “ring-tested” before they are mounted to ensure that they are free from cracks or other defects. Wheels should be tapped gently with a light, nonmetallic instrument. A stable and undamaged wheel will give a clear metallic tone or “ring.”
How do you change the grinding wheel on a bench grinder?
Slip the grinding wheel arbor hole over the axle shaft and press the holding washer into place. Thread the nut onto the axle, reverse threading it on the left side if applicable, hold the grinding wheel in your hand and tighten down the nut.
What happens when you tighten the nuts on a bench grinder?
There are two main keys to remember when tightening the wheels and nuts on a bench grinder. One, do not over tighten the nuts. If you do, you run the risk of damaging your grinding wheel and other bench grinder parts. Two, do not hit, damage or drop the grinding wheel.
What’s the proper way to test a bench grinder?
Do visually check all wheels for cracks or damage before use. In addition to the visual inspection, “Ring Test” all wheels before mounting on the bench grinder. Do check machine speed against established safe operating speed marked on the wheel.
What should the work rest be on a bench grinder?
Do make sure your bench grinder has an adjustable work rest that is kept adjusted to 1/8 inch or less from the wheel’s grinding face. Do make sure your bench grinder has an adjustable tongue guard/spark arrestor and set it to ¼ inch or less from the wheel’s grinding face.
What is a bench grinder good for? A bench grinder is a workshop machine that is meant to grind and sharpen other tools. Many modern grinders can shape, clean, polish, or buff metals as well. This machine handles and impacts just about every other tool that comes its way.
What do you use a bench grinder for?
A bench grinder is a bench top grinding machine is used on the top of the table for driving abrasive wheels. The device is widely used for performing the activities that require rough grinding or for cutting hard items. Although this machine needs one to employ a lot of expertise when using it,…
What are bench grinding wheels?
Bench and pedestal grinding wheels are used for sharpening, shaping and deburring parts and tools. Bench grinding wheels are generally used on stone and metal materials.
What does bench grinder mean?
bench grinder(Noun) A grinder, typically with a pair of grinding wheels (one at each end of the motor shaft) that is designed to be permanently mounted on a workbench. Freebase(0.00 / 0 votes)Rate this definition: A bench grinder is a type of benchtop grinding machine used to drive abrasive wheels.
