What size wedge anchors for sill plate?

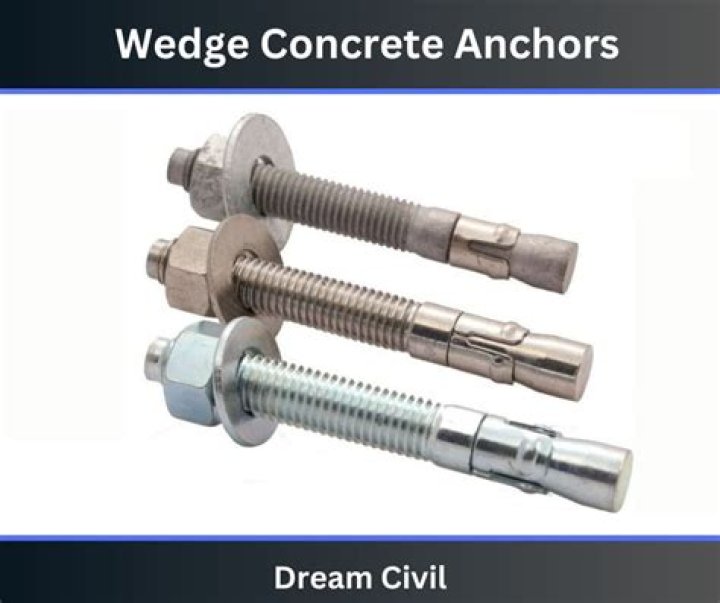

One option for installing sill plates is the use of Wedge Anchors. This type of anchor is a post-installed anchor, meaning that it is placed in concrete after it is fully cured. These fasteners are designed for use in solid concrete only. Wedge anchors are available from 1/4″ to 1 1/4″ in diameter.
What size anchor bolt do I need?
An anchor bolt diameter ranges from 3/8 inch to 1 inch or more and the length runs from roughly 6 inches to greater than 3 feet. While sizing requirements vary according to local code, 1/2 inch diameter, embedded at least 7 inches, is usually the minimum.
How do you anchor a sill plate to a slab?
How to Attach Sill Plates to Concrete
- Position the sill plate in place on the concrete slab or foundation.
- Drill holes through both the sill plate and into the concrete, using a concrete masonry drill-bit.
- Insert one wedge anchor bolt set into each drilled hole and hammer it into place with a hammer.
What size should a sill plate be?
A sill plate, also known as a sole plate, is the bottom horizontal part of a wall or building to which the vertical studs will be attached. Most sill plates are made from lumber – usually measuring 2″ x 4″, 2″ x 6″, 2″ x 8″ or 2″ x10″.
How far should anchor bolts be spaced?
6 feet
Interior braced wall plates shall have anchor bolts spaced at not more than 6 feet (1829 mm) on center and located within 12 inches (305 mm) of the ends of each plate section where supported on a continuous foundation.
What bolts are used to anchor the sill plate to the foundation?
One method for fastening sill plates is the use of cast-in-place anchors, commonly referred to as “J” Bolts. “J” bolts are anchors in the shape of the letter J with threads on the end opposite of the bent end. These bolts are set in place before the concrete is poured.
What is the minimum number of anchor bolts required for anchoring a 12 foot section of wood sill plate to a foundation?
two bolts
There shall be a minimum of two bolts per plate section with one bolt located not more than 12 inches (305 mm) or less than seven bolt diameters from each end of the plate section.
How far apart do you put J bolts in concrete?
Placement is approximately every 6 to 8 feet depending on code, with one not more than 12 inches from each end of a wall bottom plate. Make sure not to put a J-bolt in the middle of a doorway. Hammer an 8d nail on the outside of the concrete form to mark the J-bolt positions.
What goes between sill plate and foundation?
For additional moisture protection, a gasket or strip of closed-cell foam can be installed between the concrete foundation and the sill plate.
What is the purpose of the anchor bolt on a sill plate at the bottom of a light wood framed wall?
Photo 1 shows a type of steel anchor bolt that is commonly used to connect wood sill plates to concrete or masonry foundations. These anchor bolts are set in place when the foundation wall is poured (or the concrete block foundation wall is grouted) with the threaded end up.
