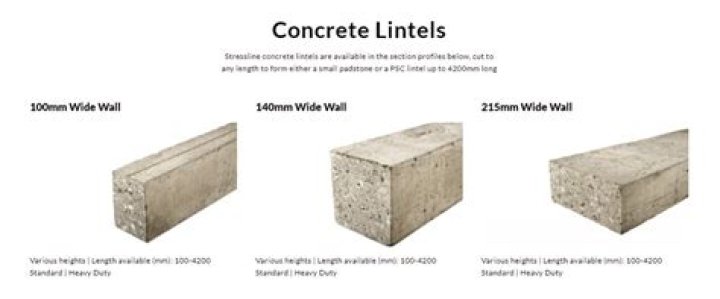

What size do concrete lintels come in?
Concrete lintels are available in a range of lengths including: 600mm, 900mm, 1200mm, 1350mm, 1500mm and 1800mm.
What is the maximum span for a concrete lintel?
1200mm
Plugging and drilling is acceptable providing that the location of prestressing tendons is not compromised. For spans greater than 1200mm, lintels should be adequately propped during construction at a maximum of 1200mm centres.
How thick should a concrete lintel be?
The width of the lintel could be equal to the thickness of opening & depth in the range between l/12 to l/8 of the span. Minimum width of 4inch (100 mm) should be provided.
Are concrete lintels cheaper than steel?
Concrete lintels are generally cost less than steel, but are there other reasons to specify them? For those people who use and install structural building products, particularly load bearing steel lintels and prestressed concrete lintels, you probably already know the main differences between the two types.
Are concrete lintels stronger than steel?
Steel lintels are stronger than concrete ones. However, a high strength pressurized concrete lintel has comparable strength and is considerably less expensive.
What size lintel do I need?
Measure the size of the open space between the walls where the door/window frame is fitted. Add a minimum of 150mm to each end. For example, for a structural opening or clear span of 1,800mm, the minimum lintel length required will be 1,800 + 150 + 150 = 2,100mm.
Can a concrete lintel break?
Concrete Lintels If your concrete lintel is suffering from horizontal cracks then you need to deal with the crack itself. This is because water can get into the crack and cause the steel reinforcement within the concrete to rust. The expansion of the rust can cause the concrete to break up.
What thickness lintel do I need?
What size concrete lintel do I need? The lintel should be installed with a minimum end bearing of 150mm, so measure your opening and add at least 300mm. Unlike steel lintels, a concrete lintel is often used in visible areas and painted if required.
Are concrete lintels load bearing?
Lintels are generally used for load-bearing purposes, but they can also be decorative. The most common materials for lintels are timber, steel and concrete. Precast concrete lintels are economical and provide robust support for structures such as masonry over door and window openings.
Can I use a concrete lintel instead of steel?
If the load can be supported by either type, and it simply comes down to cost, concrete is the more favorable option. Concrete lintels offer the installer more flexibility than their steel counterparts. Concrete lintels can also be adjusted later in a project than steel lintels.
How do you calculate lintel beams?
How To Calculate Steel Quantity Of Lintel Beam – Bar Bending…
- Length of one bar = 1.2+ (2 x 0.150) – 0.025 =1.475m.
- Length of 5 bars = 1.425 x 5 = 7.125m.
- Weight of steel for 10 mm bar = D²L/162 = 10² x 7.125/162 = 4.398 kg.
- Total length of stirrups = 0.632 x 11nos = 6.952m.
Do I need building regs for a lintel?
Yes, if the alterations are of a structural nature. The insertion of a beam or lintel which affects the structural stability of the building will also require approval.
