What is Vssop package?
VSSOP. Very-thin shrink small-outline package. Also referred as MSOP = micro small-outline package.
Is so the same as SOIC?
Small-outline J-leaded package (SOJ) is a version of SOIC with J-type leads instead of gull-wing leads.
What is a sop chip?
System-on-Package (SOP) is an emerging microelectronic technology that places an entire system on a single chip-size package.
What is SOIC package?
The SOIC is a surface mount integrated circuit package. The standard form is a flat rectangular body, with leads extending from two sides. The leads are formed in a gull wing shape to allow solid footing during assembly to a PCB. The pad can be soldered to the PCB to dissipate heat.
What is Cdip package?
CDIP (Ceramic Dual Inline Package) is a DIP package with a ceramic body. Synonyms. PDIP. DIP. Dual In-line Package.
What is a SOIC package?
What is SiP in VLSI?
Description. A system in package, or SiP, is a way of bundling two or more ICs inside a single package. This is in contrast to a system on chip, or SoC, where the functions on those chips are integrated onto the same die. SiP has been around since the 1980s in the form of multi-chip modules.
Which package type is chosen for military purposes?
Which package type is chosen for military purposes? Explanation: Ceramic DIP can be used for high temperature and high performance equipment. Explanation: A Dual-In-Line Package is usually referred to as DIPn.

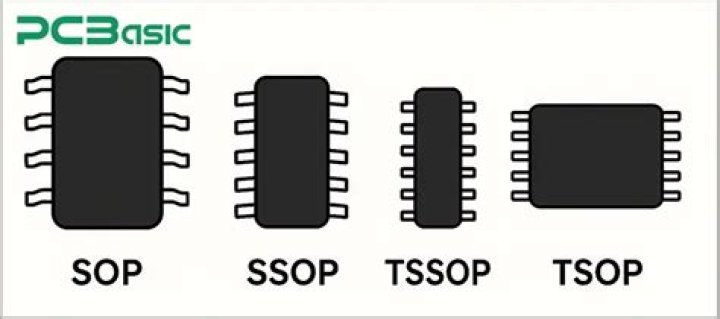

What is the difference between SSOP and Tssop?
The main difference between TSSOP and SSOP is the width of the pads or pins, the pitch between the two remains . 65 mm the width of the pads varies from .
What is the difference between Tssop and SSOP?
SSOP package having leads in two side of periphery and having lead pitch less than 1.0mm, said package named Shrink Small Outline Package. TSSOP package having an encapsulant width less than 300mils covering entire package, having total height less than 1.2mm, said package named Thin Shrink Small Outline Package.
What is SiP vs SoC?
SiP refers to encapsulation of one or more of CPUs, micro-controllers, DSPs, other accelerators and multi functional chips into a single package. SoC refers to encapsulation of one or more of CPUs, micro-controllers, DSPs, other accelerators or supporting hardware into a single chip.
What is a small-outline (so) package?
Small-outline (SO) packages include a dual row surface mount configuration with a wide variety of sizes and variations including SOIC, SOT, and all SOP spins (SSOP, TSSOP, VSSOP/MSOP).
What is the standard size for shipping a package?
Sizes for Parcels. Generally, commercial parcels must measure: At least 3 inches high x 6 inches long x 1/4 inch thick. Except for USPS Retail Ground and Parcel Select, no mailpiece may measure more than 108 inches in length and girth combined. Length is the measurement of the longest dimension and girth is the distance around the thickest part…
How many package options are available for the Texas Instruments small outline (so)?
Packages are available with or without an exposed pad, depending on thermal and electrical requirements. 180 total package options for the Texas Instruments Small Outline (SO). Use the filter panel to further refine your search. No results found. There are 180 possible matches.
What is the difference between 8-pin and 10-pin SOIC?
As an example, the values W B and W L are given for an 8-pins wide (extended) SOIC package. Another SOIC variant, available only for 8-pin and 10-pin ICs, is the mini-SOIC, also called micro-SOIC. This case is much smaller, with a pitch of only 0.5 mm. See the table for the 10-pin model.
