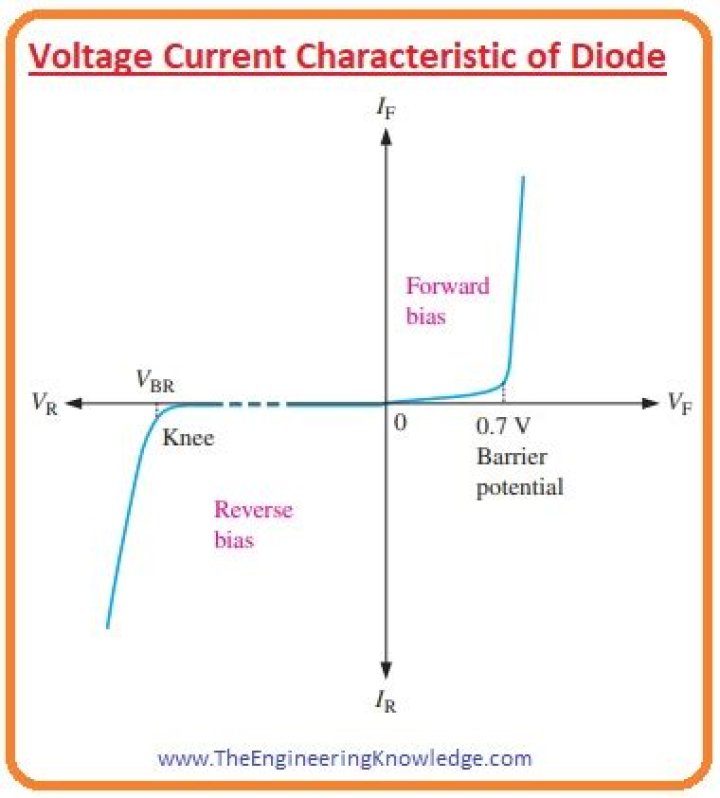

What is voltage current characteristics of diode?
Forward Characteristic When a diode is forward biased it conducts current (IF) in forward direction. The value of IF is directly dependent on the amount of forward voltage. The relationship of forward voltage and forward current is called the ampere-volt, or IV characteristic of a diode.
What are the characteristics of a silicon diode?
What Are the Characteristics of an Ideal Silicon Diode?
- Voltage Direction The direction electrons flow in a diode is characterized by forward and reverse modes.
- Ideal Diodes A reverse-biased diode is said to be an open circuit.
What is the voltage across a silicon diode?
In normal operation, the voltage across a forward biased silicon diode is somewhere between 0.60 − 0.75 V 0.60 -0.75\,\text V 0.
What is the most important characteristic of a silicon diode?
There are two important characteristics of an ideal diode: forward-biased and reverse-biased.
Why the voltage-current characteristics are important?
Important Points: The voltage-current characteristics for components are used to design circuits containing these components. Selection of components with the desired characteristics allows us to set the voltages and currents in a circuit so that the circuit performs the desired function.
What is the knee voltage of silicon?
about 0.7 volts
The knee voltage for silicon diodes is about 0.7 volts, which is due to the properties of silicon when doped to form P-N junctions.
Why does voltage drop across a diode?
In addition to the energy level difference needed to transport charge across the junction there is also a resistive part of the diode that drops some voltage as well. The resistive drop in the diode will be dependent upon the amount of current flow allowed through the junction.
What is the current through the diode?
The positive end of a diode is called the anode, and the negative end is called the cathode. Current can flow from the anode end to the cathode, but not the other direction. If you forget which way current flows through a diode, try to remember the mnemonic ACID: “anode current in diode” (also anode cathode is diode).
What is the value of knee voltage of silicon diode?
What are the four voltage current characteristics commonly used today?
Name the four voltage- current characteristics commonly used today.
- 230- volts/ single phase/ 60 Hertz.
- 208 – volts / three phase/ 60 Hertz.
- 230 – volts / three phase / 60 Hertz.
- 480 – volts / three phase / 60 Hertz.
