What is VLAN ID in FortiGate?

The trunk link transports VLAN-tagged packets between physical subnets or networks. When you add VLAN subinterfaces to the FortiGate’s physical interfaces, the VLANs have IDs that match the VLAN IDs of packets on the trunk link. The FortiGate unit directs packets with VLAN IDs to subinterfaces with matching IDs.

How do I check FortiGate VLAN details?

1) Go to System -> Network and select ‘Create New’.

  1. 2) Give a Name to the VLAN interface. 3) Choose the physical interface on which to attach the VLAN.
  2. 7) Go to System -> Network, select the blue arrow to expand the physical port and the VLAN will be displayed.
  3. Configuration steps from the CLI. # config system interface.

What is the native VLAN on FortiGate?

The native VLAN is like a default VLAN for untagged incoming packets. Outgoing packets for the native VLAN are sent as untagged frames. The native VLAN is assigned to any untagged packet arriving at an ingress port.

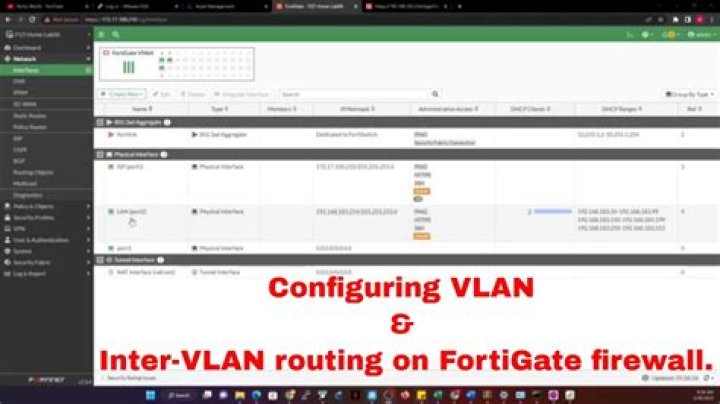

How do I tag a VLAN in FortiGate?

Configuration steps from the GUI :

  1. Go to System -> Network and select ‘Create New’.
  2. Give a Name to the VLAN interface.
  3. Choose the physical interface on which to attach the VLAN.
  4. Select ‘Type’ as VLAN.
  5. Give the desired VLAN ID.
  6. Select ‘Apply’.

What is EMAC VLAN?

The media access control (MAC) virtual local area network (VLAN) feature allows you to configure multiple virtual interfaces with different MAC addresses (and therefore different IP addresses) on a physical interface.

How do I assign a VLAN to FortiSwitch?

To assign FortiSwitch ports to the VLAN:

  1. Go to WiFi & Switch Controller > FortiSwitch Ports.
  2. Click a port row.
  3. Click the Native VLAN column in one of the selected entries to change the native VLAN.
  4. Select a VLAN from the displayed list.
  5. Click the + icon in the Allowed VLANs column to change the allowed VLANs.

How do I add a VLAN to my firewall?

Adding a VLAN interface

  1. Go to Network > Interfaces.
  2. Click Add Interface and then select Add VLAN. Note: The VLAN associated with an interface should be configured with the same IP (IPv4 or IPv6) family as the one used to configure the physical interface.
  3. Enter the following parameters:
  4. Click Save to add the VLAN.

Why is a native VLAN needed?

Finally, we can conclude that the basic purpose of native VLAN is to serve it as a common identifier on opposing ends of a trunk link. To carry untagged traffic which is generated by a computer device attached to a switch port, which is configured with the native VLAN.

What is a native VLAN?

Native VLAN: The native VLAN is the one into which untagged traffic will be put when it’s received on a trunk port. This makes it possible for your VLAN to support legacy devices or devices that don’t tag their traffic like some wireless access points and simply network attached devices.

What is NPU Vdom link?

By default the NPU VDOM link interfaces are assigned to the root VDOM. To use them to accelerate inter-VDOM link traffic, assign each interface in the pair to the VDOMs that you want to offload traffic between.

How do I find MAC address in FortiGate firewall command line?

Go to Network -> Interfaces -> Edit Interface and along with the interface name hardware address also be added from version 5.4 onward.

How do I set up FortiLink?

Configure the FortiLink interface

  1. Go to WiFi & Switch Controller > FortiLink Interface.
  2. Select + in the Interface members field and then select the ports to add to the FortiLink interface.
  3. Configure the IP/Network Mask for your network.
  4. Select Automatically authorize devices.
  5. Select Apply.
