What is TVD and Tvdss?

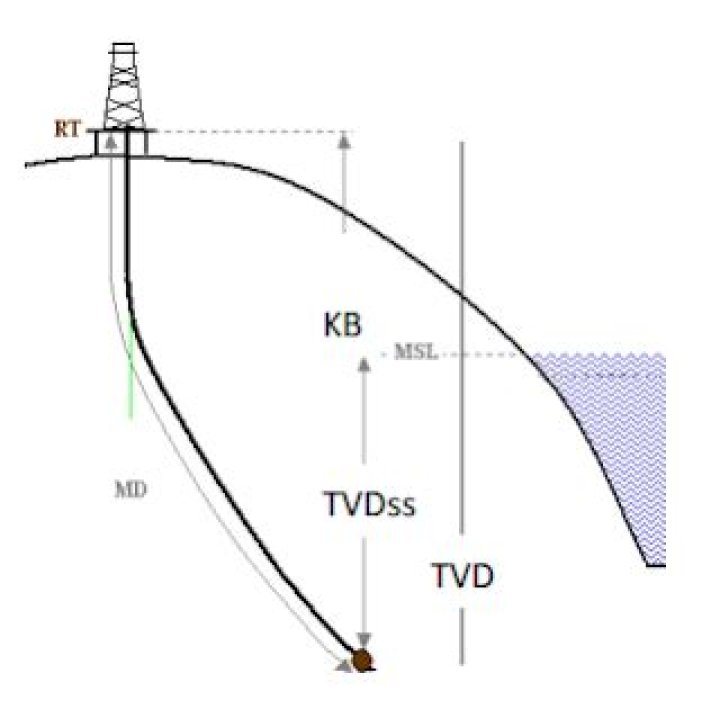

True Vertical Depth (TVD), is the absolute vertical distance between a datum, such as the rotary table, and a point in the wellbore. True Vertical Depth Sub Sea (TVDSS), is the absolute vertical distance between mean sea level and a point in the wellbore.
What is measured depth in a well?
The length of the wellbore, as if determined by a measuring stick. This measurement differs from the true vertical depth of the well in all but vertical wells.
What is measure depth?
Commonly abbreviated as D, depth is a measurement of how far back a three-dimensional object is. For example, measurements of an object, such as a computer monitor, are commonly measured as (D x W x H), short for Depth by Width by Height. In the illustration, the Z-axis is the depth.
What does TVD mean in drilling?
true vertical depth
true vertical depth. 1. n. [Drilling] The vertical distance from a point in the well (usually the current or final depth) to a point at the surface, usually the elevation of the rotary kelly bushing (RKB). This is one of two primary depth measurements used by the drillers, the other being measured depth.
What is the difference between TVD and MD?
Difference between True Vertical Depth (TVD) and Measured Depth (MD) True Vertical Depth (TVD) is measured vertically from the surface down to a certain target down hole. Measured Depth (MD) is the total length of the wellbore measured along the actual well path.
What does Tvdss stand for?
True Vertical Depth
TVDSS is True Vertical Depth SS. This is measured from mean sea level (MSL). It does not reference KB. Kelly Bushing (KB) is the height of the Derek (drill rig) measured from the MSL. The interpreter should manually enter the KB height under the well info tab (see Creating a New Well).
How do you calculate true vertical depth?
As the angle of deviation increases, the less True Vertical Depth is. TVD = . 940 x 1000 = 940 feet.
What is true vertical depth in drilling?
In the petroleum industry, true vertical depth, abbreviated as TVD, is the measurement from the surface to the bottom of the borehole (or anywhere along its length) in a straight perpendicular line represented by line (a) in the image.
What can make measured depth different than true vertical depth?
True Vertical Depth (TVD) is measured vertically from the surface down to a certain target down hole. Measured Depth (MD) is the total length of the wellbore measured along the actual well path.
What is inclination and azimuth?
Azimuth is typically measured clockwise from north. The inclination is the deviation of the wellbore from the vertical. The azimuth and inclination define the coordinates of the wellbore along its length, usually relative to the location of the wellhead.
What is the difference between MD and TVD?
What is true vertical thickness?
The measured thickness in a vertical well (or along a vertical traverse) is the true vertical thickness (TVT). A “thickness” measurement that is easily derived from well data is the TVD or true vertical depth thickness, and is the difference in elevation between the top and base of a unit in a well log.
