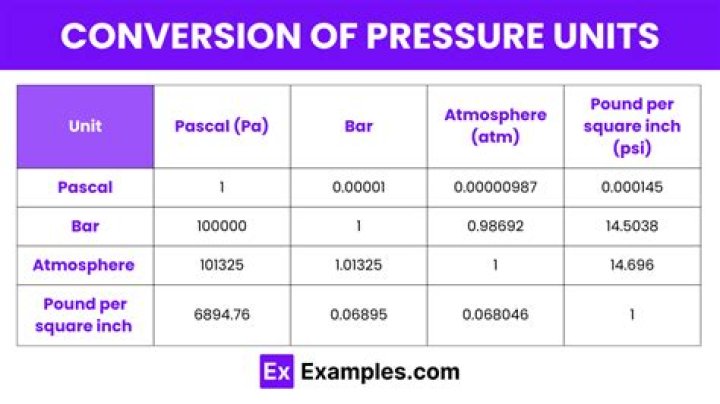

What is the unit of pressure 1 bar?
It is defined as exactly equal to 100,000 Pa (100 kPa), or slightly less than the current average atmospheric pressure on Earth at sea level (approximately 1.013 bar). By the barometric formula, 1 bar is roughly the atmospheric pressure on Earth at an altitude of 111 metres at 15 °C.
What are the 4 measurements of pressure?
These four types of pressure measurements are gauge, sealed, absolute and differential.
What is the meaning of KGF cm2?
kilogram-force per centimetre square
A kilogram-force per centimetre square (kgf/cm2), often just kilogram per square centimetre (kg/cm2), or kilopond per centimetre square is a deprecated unit of pressure using metric units. It is not a part of the International System of Units (SI), the modern metric system. 1 kgf/cm2 equals 98.0665 kPa (kilopascals).
Is mm a pressure unit?
A millimetre of mercury is a manometric unit of pressure, formerly defined as the extra pressure generated by a column of mercury one millimetre high, and currently defined as exactly 133.322387415 pascals. It is denoted mmHg or mm Hg.
What is bar gauge?
Bar Gauge (or just ‘Bar’) is open to the atmosphere and uses atmospheric pressure as its base value – your pressure calibrator is therefore zeroed before testing. ‘Ambient’ will read 0, a vacuum will read as a negative (e.g -0.5bar), and pressure will read as a positive (e.g. 2.2bar).
What does 3 bar pressure mean?
3 bar is 3,00,000 Pascal. The bar is 0.98 atm. The atm is the atmospheric pressure. The atmosphere exerts pressure on us that is equal to 3 bar.
What is Magnehelic gauge?
Magnehelic Gauges. Magnehelic gauges are low pressure differential devices to measure very low pressures between two pressure sources. They can also be used to measure positive, compound or negative pressure. Custom dial markings are often used to allow easy reading.
