What is the size of a 1/2 watt resistor?
about 9.2mm

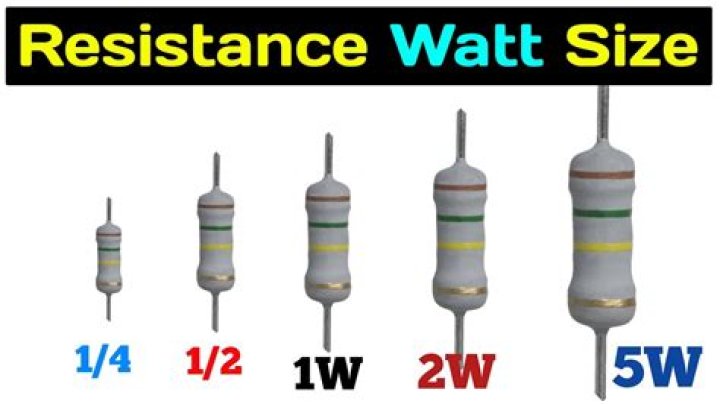

The most common through-hole resistors come in an axial package. The size of an axial resistor is relative to its power rating. A common ½W resistor measures about 9.2mm across, while a smaller ¼W resistor is about 6.3mm long. A half-watt (½W) resistor (above) sized up to a quarter-watt (¼W).
What color is a 33K resistor?
Technical Specifications
| Resistance | 33K ohm | |
|---|---|---|
| Color Code | Orange / Orange / Orange / Gold | |
| Type | Carbon Film | |
| Voltage | Maximum Operating | 350V |
| Polarization | None |
How many ohms is a 2 watt resistor?
47000
Specifications
| Specification | Value |
|---|---|
| Resistance (ohm) | 47000 |
| Power Rating | 2 W |
| Tolerance | 5% |
| Package | Through Hole |
What is an 0603 resistor?
The size of SMD resistors is indicated by a numerical code, such as 0603. This code contains the width and height of the package. So, the imperial code 0603 indicates a length of 0.060″ and a width of 0.030″. In general, the imperial code is used more often to indicate the package size.
How big is an 0402 resistor?
1.0 mm × 0.5 mm
Chip Resistor Sizes
| ROHM Part No. | Chip Size (Length x Width) | inch |
|---|---|---|
| ***006 | 0.6 mm × 0.3 mm | 0201 |
| ***01 | 1.0 mm × 0.5 mm | 0402 |
| ***03 | 1.6 mm × 0.8 mm | 0603 |
| ***10 | 2.0 mm × 1.2 mm | 0805 |
What is 33K ohm resistor?
33K Ohm 0.25W High Quality Metal Film Resistor (MFR) with ±1% Tolerance and Tin Plated Copper Leads. 33K Ohm Resistor Color Code: Orange, Orange, Black, Red, Brown. Resistance: 33K Ohm, Power Rating: 0.25 Watt, Approximate Maximum Current: 2.75mA .
What is the color code for a 560 ohm resistor?
560 Ohm Resistor Color Code: Green, Blue, Brown, Golden.
What is a 1 4W resistor?
1/4W means – The maximum power dissapation should not exceed 250mW. 1/2W means- The maximum power dissapation should not exceed 500mW. U have to calculate the current through the resistor according to ur resistor value and find the power dissipation. P = I * I * R.
What color is a 2 ohm resistor?
Red
Resistor Band Colors
| Color | Value |
|---|---|
| Brown | 1 |
| Red | 2 |
| Orange | 3 |
| Yellow | 4 |
How many watts can a resistor handle?
Power is measured in units called watts. The more watts a resistor can handle, the larger and more expensive the resistor is. Most resistors are designed to handle 1/8 W or 1/4 W. You can also find resistors rated for 1/2 W or 1 W, but they’re rarely needed in the hobbiest types of electronic projects.
What wattage resistor do I need?
Generally speaking the larger their physical size the higher its wattage rating. However, it is always better to select a particular size resistor that is capable of dissipating two or more times the calculated power….The Resistor Power Triangle.
| Type | Power Rating | Stability |
|---|---|---|
| Wirewound | High up to 500 Watts | High 1% |
