What is the radiation resistance of loop antenna?
The small loops of a single turn have small radiation resistance (< 1 Ω) usually comparable to their loss resistance. Their radiation resistance, however, can be improved by adding more turns. Also, the small loops are narrowband. Typical bandwidths are less than 1%.
How do you calculate radiation resistance?
The radiation resistance is determined by the geometry of the antenna and the operating frequency. The total feedpoint resistance at the antenna’s terminals is equal to the radiation resistance plus the loss resistance due to ohmic losses in the antenna.
What is the impedance of a magnetic loop antenna?
The antenna feed points would be in series with the loop, such that a small loop looks somewhat like a short circuit across the antenna feed. These antennas have low radiation resistance and high inductive reactance, so that their impedance is difficult to match to a radio impedance (often 50 Ohms).
What do you mean by radiation resistance?
Definition of radiation resistance : the component of antenna resistance that accounts for the power radiated into space and is equal in ohms to the radiated power in watts divided by the square of the effective current in amperes at the point of power supply.
What is aperture of an antenna?
The aperture of the antenna is the area whose orientation is normal to the direction from where the electromagnetic wave is coming. This is done in order to intercept the equivalent power from the incoming wave as it can be produced by the antenna which is receiving it.
What is the most radiation resistant material?
The only factor that matters when it comes to x-ray shielding is density. This is why lead aprons and blankets are the most effective shielding material to fight off x-rays and gamma-ray. After all, lead has a very high number of protons in each atom (82 to be specific), which makes it a very dense metal shield.

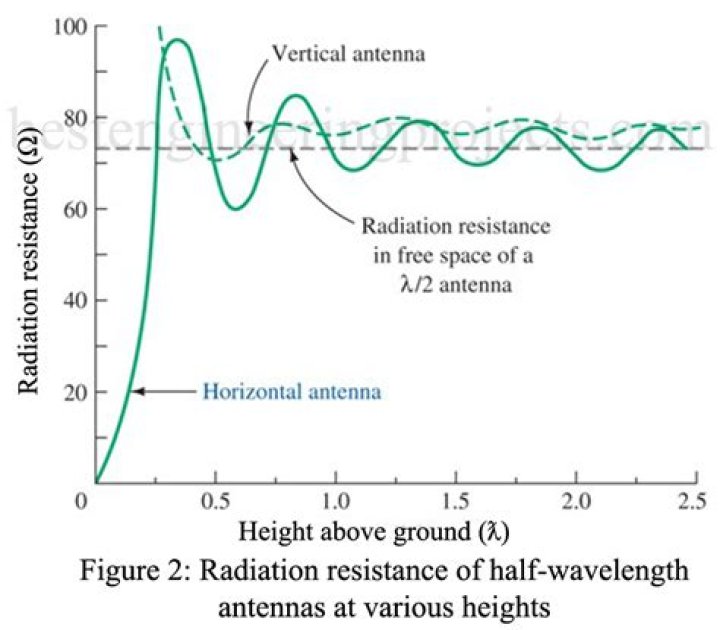

What is the radiation resistance of λ 2 antenna?
λ/2 Dipole or Half-wave dipole: Length of dipole = λ/2. Directivity = 1.64 or 2.15 dBi. Impedance for half-wave dipole antenna in free space is 73 Ω
What will be the radiation pattern of the roof mounted antenna?
14. What will be the radiation pattern of roof-mounted antenna? Not uniformly distributed.
Why loop antenna is inefficient?
The radiation resistance RR of a small loop is generally much smaller than the loss resistance RL due to the conductors composing the loop, leading to a poor antenna efficiency.
How do magnetic loop antennas work?
A magnetic loop antenna is a winding of copper wire around a frame (for air-core loops) or around ferromagnetic material (for ferrite loops). A loop antenna is actually sensitive to the magnetic field and not the electric field (it is also called a magnetic loop). It outputs a voltage proportional to that field.
Can you be resistant to radiation?
Radioresistance is the level of ionizing radiation that organisms are able to withstand. Certain extremophiles, such as the bacteria Deinococcus radiodurans and the tardigrades, can withstand large doses of ionizing radiation on the order of 5,000 Gy.
