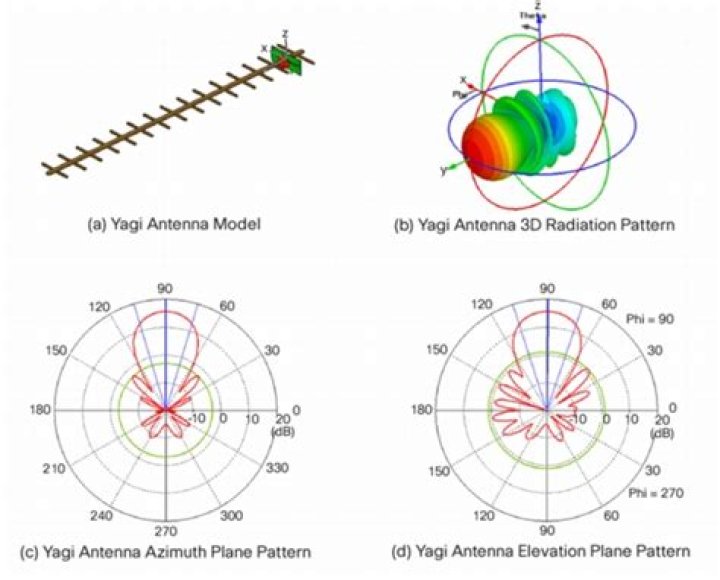

What is the radiation pattern of Yagi antenna?
Explanation: Radiation pattern of a Yagi-Uda antenna is end-fire. It has its main beam parallel to the axis of antenna (boom). The addition of directors will increase the gain of antenna while reflectors will increase the directivity of antenna.
What is the radiation pattern of an inverted V antenna?
Although an inverted-V has its greatest degree of radiation at right angles to the axis of the antenna, its radiation pattern is more omnidirectional than that of a horizontal dipole as a result of the fact that the legs are angled downwards.
What is the radiation pattern of a Uda antenna?
Radiation Pattern The directional pattern of the Yagi-Uda antenna is highly directive as shown in the figure given below. The minor lobes are suppressed and the directivity of the major lobe is increased by the addition of directors to the antenna.
Is the radiation pattern of a directional antenna?
In the field of antenna design the term radiation pattern (or antenna pattern or far-field pattern) refers to the directional (angular) dependence of the strength of the radio waves from the antenna or other source. Other software, like HFSS can also compute the near field.
How directional is a Yagi antenna?
Is a Yagi Antenna Directional? Yes. To be exact, a Yagi antenna is unidirectional, and that’s the main feature when improving cell signal: it aims to maximize the reception of signal from a particular carrier in just one direction.
Are inverted V antenna directional?
The radiation pattern of inverted V-antenna is uni-directional pattern, as no standing waves are formed here. The gain and directivity are improved by having an array of antennas.
What is the best angle for an inverted V antenna?
An important factor to keep in mind is the need for a balanced-to-unbalanced impedance transformation mechanism at the antenna feed-point when fed using a coaxial cable. This is important to attain optimum performance. Typically, most Inverted V structures are designed to have the Apex angle between 120°-90°.
Is a Yagi antenna directional?
Yagi antennas are powerful directional antennas. A yagi antenna needs to be set up pointing in the direction of the cell tower, and because it is directional it will only pick up signal in that direction.
What are the different elements of Yagi-Uda antenna?
Drawing of Yagi–Uda VHF television antenna from 1954, used for analog channels 2–4, 54–72 MHz (USA channels). It has five elements: three directors (to left) one reflector (to right) and a driven element which is a folded dipole (double rod) to match the 300 Ω twin lead feedline.
How do you mount a Yagi directional antenna?
Point the main center beam of the Yagi in the general direction of the cell tower. Make sure the radials are pointing up and down. Connect the antenna to a cell phone in test mode. Pan the Yagi left and right in 10-degree increments until you get the best signal strength reading from the phone.
