What is the OD of Schedule 80 PVC pipe?
1.315″
PVC Schedule 80 Sizes Table
| Pipe Size | Decimal OD | Average ID |
|---|---|---|
| 1″ | 1.315″ | 0.957″ |
| 1-1/4” | 1.660″ | 1.278″ |
| 1-1/2” | 1.900″ | 1.500″ |
| 2″ | 2.375” | 1.939″ |
What is the difference between Schedule 40 and Schedule 80 electrical PVC?
Schedule 40 PVC conduit is cheaper and has a larger inside diameter, so it’s easier to pull wires through it. The plastic on Schedule 80 is thicker, but the conduit has the same outside diameter as 40, so the inside diameter is smaller.
What is the thickness of SCH 80 pipe?
A 4 inches (100 mm) Schedule 80 pipe has an outside diameter of 4.500 inches ( 114.30 mm), a wall thickness of 0.337 inches (8.56 mm), giving a bore of 3.826 inches (97.18 mm)
What is the difference between Sch 40 and Sch 80?
Each one has its benefits in different applications. Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch). This makes it ideal for industrial and chemical applications.
What is the OD of Schedule 40 PVC pipe?
1.315

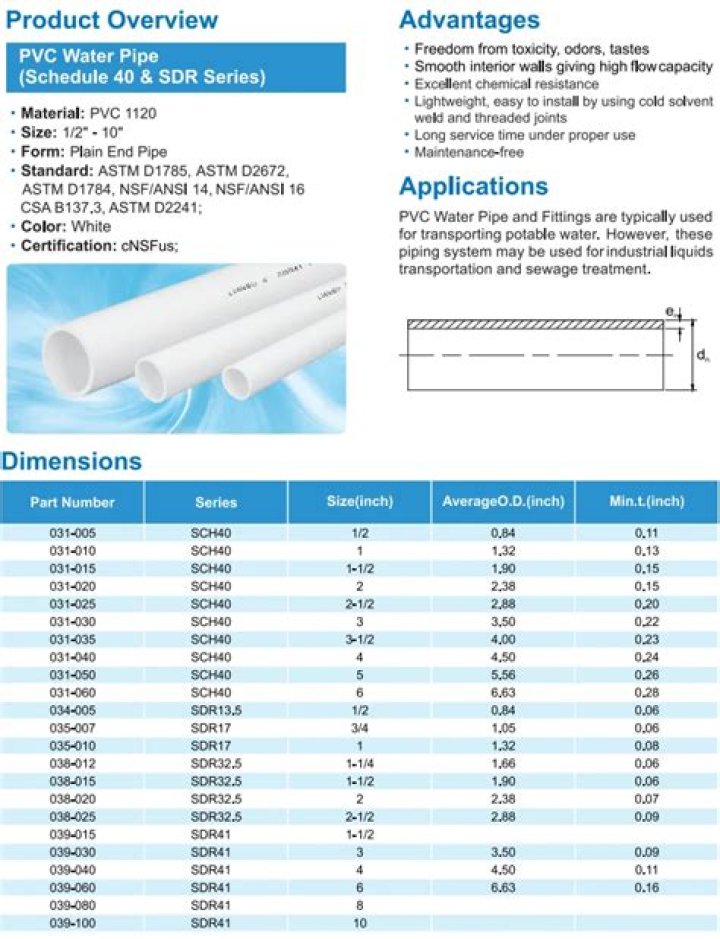

Schedule 40 PVC Pipe Dimensions Chart
| Nominal Pipe Size | O.D. | Average I.D. |
|---|---|---|
| 1″ | 1.315 | 1.029 |
| 1-1/4″ | 1.660 | 1.360 |
| 1-1/2″ | 1.900 | 1.590 |
| 2″ | 2.375 | 2.047 |
What is Schedule 40 PVC pipe used for?
PVC Schedule 40 pipe is used for drainage and lower pressure water flow applications. Schedule 40 PVC pipe can handle up to 140 degrees F in temperature. Pipe lengths come in standard 10′ or 20′ sections.
What is the meaning of SCH 40 in a pipe?
Pipe size 1.000” Schedule 40 – The actual wall thickness is 0.133” Pipe size 2.000” Schedule 40 – The actual wall thickness is 0.154” Pipe size 1.000” Schedule 80 – The actual wall thickness is 0.179” Pipe size 2.000” Schedule 80 – The actual wall thickness is 0.218”
Which is thicker schedule 40 or 80?
Both schedule 40 and 80 PVC are used widely around the world. Each one has its benefits in different applications. Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch).
Can GREY and white PVC be glued together?
White (water) PVC is pressure rated and gray (Electrical) PVC is not. White PVC is softer than Gray so it bends easier. Gray uses the single step clear PVC cement won’t leave blue or read stains as many times it’s in the open and can be seen. (Note you can use the clear cement on white for non pressure uses.)
