What is the KSI of 1018 steel?

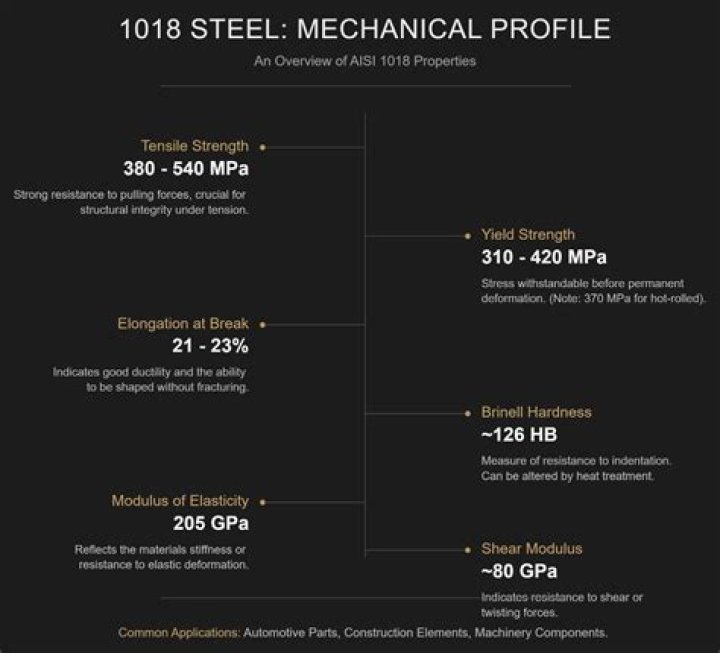

The following table shows mechanical properties of cold drawn AISI 1018 carbon steel….Mechanical Properties.
| Properties | Metric | Imperial |
|---|---|---|
| Modulus of elasticity | 205 GPa | 29700 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Poisson’s ratio | 0.29 | 0.29 |
| Elongation at break (in 50 mm) | 15% | 15% |
What is the ultimate strength of 1018 steel?
440 MPa 63800 psi
Vendors:
| Physical Properties | Metric | English |
|---|---|---|
| Hardness, Rockwell B | 71 | 71 |
| Hardness, Vickers | 131 | 131 |
| Tensile Strength, Ultimate | 440 MPa | 63800 psi |
| Tensile Strength, Yield | 370 MPa | 53700 psi |
What is the modulus of elasticity for 1018 steel?
205 GPa
Mechanical Properties
| Mechanical Properties | Metric | Imperial |
|---|---|---|
| Tensile Strength, Yield | 370 MPa | 53700 psi |
| Elongation at Break (In 50 mm) | 15.0 % | 15.0 % |
| Reduction of Area | 40.0 % | 40.0 % |
| Modulus of Elasticity (Typical for steel) | 205 GPa | 29700 ksi |
What is 1018 steel used for?
General Characteristics of 1018 Cold Finished Bar Because of its high workability, machinability, and combination of most steel traits, 1018 steel is useful for creating a number of high volume machine parts, including: Fasteners. Anchor bolts.
Is 1018 steel brittle or ductile?
The chemical composition of 1018 steel creates a strong and ductile material that has relatively low toughness and hardness compared with other alloys.
Is 1018 the same as A36?
Alloy 1018 is the most commonly available of the cold-rolled steels. Chemically, it is very similar to A36 Hot Rolled steel, but the cold rolling process creates a better surface finish and better properties.
