What is the frequency response of a common emitter amplifier?
Most of the audio amplifiers have a flat frequency response that ranges from 20 Hz – 20 kHz. For an audio amplifier, the frequency range is known as Bandwidth. The dB (decibel) is 1/10th of a B (bel), is a familiar non-linear unit to measure gain & is defined like 20log10(A).
What is low frequency response of amplifier?
Total Low-Frequency Response of an Amplifier the critical frequency of one RC circuitry is larger than then other 3, then it is dominant RC circuitry. The dominant circuitry find the frequency at which the total voltage gain of amplifier start to decrease at -20 dB/decade.
What is high frequency response of amplifier?
The two RC circuits created by the internal transistor capacitances influence the high frequency response of BJT amplifiers. As the frequency increases and reaches the high end of its midrange values, one of the RC will cause the amplifier’s gain to begin dropping off.

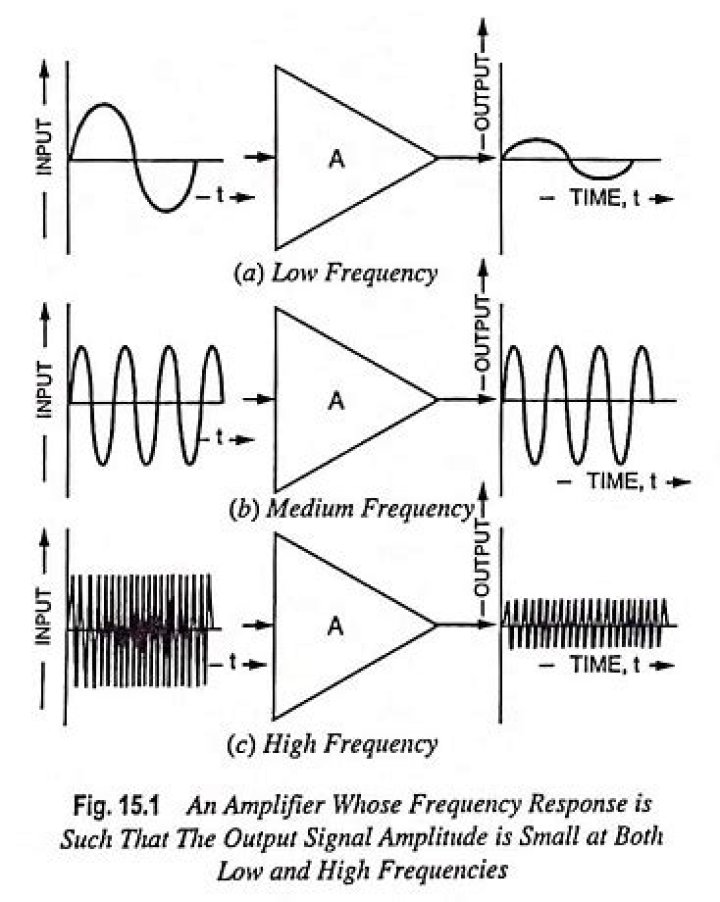

Why the gain of amplifiers are lower at low frequencies and high frequencies?
The capacitive reactance of coupling and by pass capacitors is large at low frequencies. At high frequencies, the reactance offered by junction capacitance of transistor and wiring capacitance is less. As this is in paralleled with output resistance, gain decreases with increase in frequency.
What is low frequency response in BJT?
It has three RC networks that affect its gain as the frequency is reduces below midrange. Low frequency analysis of BJT: From above figure, it has three RC networks that affect its gain as the frequency is reduces below midrange.
What is low frequency gain?
[′lō ‚frē·kwən·sē ′gān] (electronics) The gain of the voltage amplifier at frequencies less than those frequencies at which this gain is close to its maximum value.
What does low frequency response mean?
A speaker’s frequency response range is a measurement of how wide a selection of sounds it can reproduce. The human ear is capable of hearing sounds from 20 – 20,000 Hz. The lower the number the lower the tone and vice versa.
How do you calculate high frequency response?
High frequency response Moreover, this theorem states that Cin=CBC(AV,mid+1) and Cout=CBC(AV,mid+1)/AV,mid. The total input capacitance of this circuit is CIN=CBE+Cin ; the total input resistance is RIN=RS//R1//R2//βre.
What is low frequency analysis?
Why does gain decrease at high frequency?
At higher frequencies, the internal junction capacitors of transistor come into play, thus reducing the output and therefore the gain of amplifier. The capacitor reactance decreases with increase in frequency bypassing the majority of output. In some cases the output gets fed back to input as negative feedback.
What causes the high frequency gain fall off what causes the low frequency gain fall off?
As shown in Figure 1, the gain of the amplifier falls off at low frequency because the coupling capacitors and the bypass capacitors become open circuit or they have high impedances. Any two pieces of metal close to each other become a capacitance at higher frequencies.
