What is the formula of slew rate?
Plugging this into the formula, slew rate=2πfV= 2(3.14)(25,000,000Hz)(10V)= 1,570,000,000V/s. Converting this to V/μS, we divide this number by 1,000,000 to get 1570V/μS, which is the standard way of showing the slew rate. So the minimum slew rate to output this voltage at this frequency is 1570/μS.
What is slew rate and CMRR in an op-amp?
It means, an ideal op-amp will amplify the signals of any frequency without any attenuation. Common Mode Rejection Ratio (CMRR) is infinity. Slew Rate (SR) is infinity. It means, the ideal op-amp will produce a change in the output instantly in response to an input step voltage.
Which op-amp has high slew rate?
The LT1357 is a high speed, very high slew rate operational amplifier with outstanding AC and DC performance. The LT1357 has much lower supply current, lower input offset voltage, lower input bias current, and higher DC gain than devices with comparable bandwidth.
What does the slew rate refer to?
Slew rate refers to the speed at which a gradient can be turned on and off, and is defined as the maximum gradient strength of the gradient divided by the rise time. MR imaging is a product of magnetic field gradients which are created by magnetic gradient coils.
How is op amp slew rate calculated?

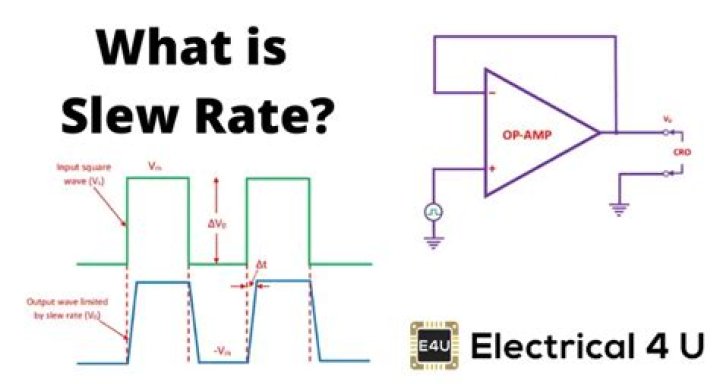

The slew rate is measured by applying a step signal to the input stage of the op-amp and measuring the rate of change occurs at the output from 10% to 90% of the output signal’s amplitude. Generally, the applied step signal is large and it is about 1 V.
How does op amp increase slew rate?
The slew rate of an OTA or op-amp is proportional to the maximum current, usually available from the first stage of the circuit. Increase in the slew rate requires increase in the value of bias current source, which will increase the overall power dissipation of the circuit.
What is slew rate mention the unit of slew rate?
In electronics, slew rate is defined as the change of voltage or current, or any other electrical quantity, per unit of time. Expressed in SI units, the unit of measurement is volts/second or amperes/second, but is usually expressed in terms of microseconds (μs) or nanoseconds (ns).
What causes slew rate in op-amp?
Op amp slew rate basics The slew rate of an op amp or any amplifier circuit is the rate of change in the output voltage caused by a step change on the input. This means that when a large step change is placed on the input, the electronic device would be able to provide an output 10 volt change in one microsecond.
Which is better high or low slew rate?
Most amplifiers (even the cheap ones) should have a slew rate above 6.3 V/µs. The seemingly high slew rates of most amplifiers are simply good engineering. Having a slew rate that yields a maximum frequency well above the audible range will pretty much eliminate any potential errors and unwanted distortion whatsoever.
