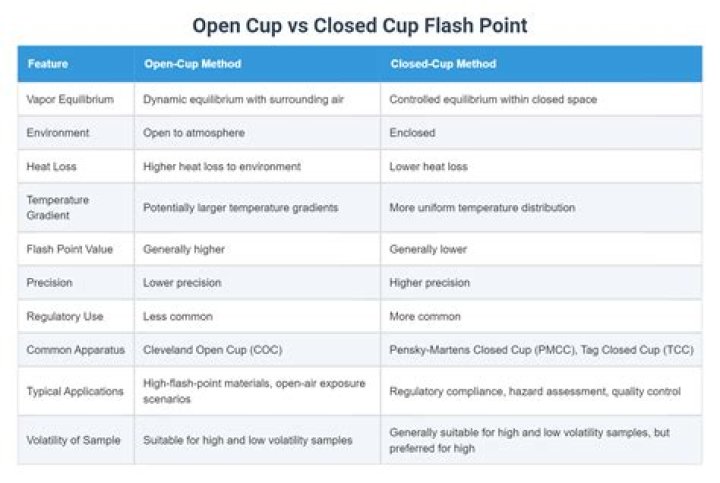

What is the difference between open cup and closed cup flash point?
The key difference between open cup and closed cup flash point is that open cup method gives usually higher values for the flash point than closed cup method. Flash point is the lowest temperature at which the flammable vapour of a volatile liquid ignites when we provide it with an ignition source.
How do you test a flashpoint?
The open cup method for flash point testing uses a vessel, or container, that is exposed to the outside air. Once the sample material is placed in the vessel, you then gradually raise its temperature, and pass an ignition source over it, until it flashes and ignites at a certain point. This is the sample’s flash point.
Which test is performed for Tag Open Cup apparatus?
Tag Open Cup Flash Tester determines flash and fire points of liquids at temperatures up to 325°F (163°C), and the flashpoint of cutback asphalts with temperatures at 200°F (93°C) or lower.
What is the flash point range of Abels closed cup apparatus?
Abel Flash Point Apparatus is suitable for determining the close cup flash point of Petroleum and mixtures according to IP 33 & IP 170 and also IS 1448 (Part I) 1985 (P:20). It is suitable for oils whose flashes below 70°C. It is supplied with oil cup, cover fitted with stirrer, thermometer socket S.S.
What is the limitations of Abel’s closed cup apparatus?
1. It lacks precision. 2. It gives a higher flash point than a closed cup as it allows free loss of vapours to the atmosphere.
Why closed cup apparatus is more reliable than open cup?
Closed cup testers normally give lower values for the flash point than open cup (typically 5–10 °C or 9–18 °F lower) and are a better approximation to the temperature at which the vapour pressure reaches the lower flammable limit.
What is a flash point test and a fire point test?
Flash Point is defined as the lowest temperatures at which the vapor of the test specimen starts to ignite the specified conditions of the test but the other one. Fire point is defined as the lowest temperature at which the test specimen will sustain burning for five seconds under the specified conditions of the test.
How do you determine flash and fire point?
Flash point: The flash point of a material is the lowest temperature at which the vapour of substance momentarily takes fire in the form of a flash under specified condition of test. Fire point: The fire point is the lowest temperature at which the material gets ignited and burns under specified condition of test.
What is Cleveland open cup tester?
Cleveland Flash Point Tester is used in the Cleveland Open Cup method to measure flash and fire points for petroleum products igniting above 175°F (79°C). The variable control 10A, 1250W nickel-chromium heater assures accurate rate-of-rise temperature settings.
What is open cup flash?
Measuring a flash point using an open cup method is, as the name suggests, conducted in a vessel which is exposed to the air outside. The temperature of the substance is gradually raised and an ignition source is passed over the top of it, until it reaches a point at which it “flashes” and ignites.
What is the difference between Abels and Pensky-Martens apparatus?
Able Flash Point Apparatus. It is designed as per I.P. Pensky-Martens Flash Point Tester: PMA 5. The automatic Pensky-Martens closed-cup tester measures the flash point at the lowest temperature at which the application of an ignition source causes the vapors of a sample to ignite.
Why is open cup flash point of a flammable liquid is always higher by a few degrees then the close cup flash point?
The closed-cup method prevents vapors from escaping. The open cup tester, on the other hand, will lose the most volatile components. Thus, open-cup flash points are higher than those for the same solvent measured in the closed cup tester.
