What is the difference between hardness Shore A and D?

What is the difference between hardness Shore A and D?

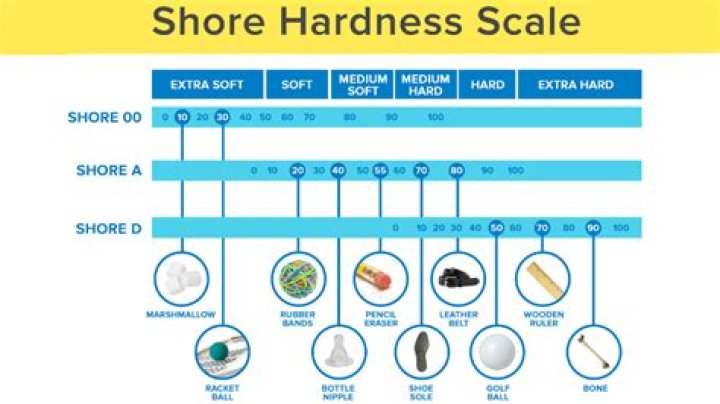

Shore hardness is expressed by a number ranging from 0 to 100 on either a Shore A or Shore D scale. The major differentiation between the Shore A and Shore D is that Shore A is specified to measure flexible rubbers while Shore D is specified for harder, rigid materials.

Can one convert from shore hardness to an equivalent Young’s modulus if so what is the conversion formula?

There is a simple calculation to convert a Shore durometer to Young’s Modulus, which is sufficient to get you started with your analysis work. For a durometer given in Shore-A, multiply this value by 0.0235. Then subtract 0.6403 from this result.

What is the Shore hardness test used for?

A useful measure of comparative resistance to indentation of different polymers grades, it is typically used as a substitute for flexibility in the production of specs for elastomers, for instance.

How hard is 70A durometer?

A 70A rubber (as hard as a car tire) is stiff and would not offer enough flexibility to extract this model without breaking it. A better choice would be a Shore 30A rubber or softer that would offer enough flexibility to easily extract the model.

What is the unit of shore hardness?

Durometer
Shore hardness is measured with a device known as a Durometer, hence the term ‘Durometer hardness’. Hardness value is determined by the penetration of the Durometer indenter foot into the sample being tested….Some D rated examples.

Is a higher durometer harder?

Durometer is a gauge that can be used to check the hardness of given materials. Hardness is the resistance to surface penetration. Lower numbers indicate softer, more flexible materials, while higher numbers indicate harder and typically more durable materials.

What is unit of shore hardness?

Shore hardness is a measure of the resistance of a material to penetration of a spring loaded needle-like indenter. Hardness of Polymers (rubbers, plastics) is usually measured by Shore scales. Shore hardness value may vary in the range from 0 to 100. Maximum penetration for each scale is 0.097-0.1 inch (2.5-2.54 mm).

How do you read a durometer hardness?

The durometer dial reads from 0 to 100 points….Readings less than 10 or above 90 should be avoided.

1. If more than 90 points in A scale, use D scale.
2. If less than 10 points in D scale, use A scale.
3. Use other scales to obtain a reading closer to 50 points.

How to calculate the shore hardness of a durometer?

As with Shore hardness, larger values indicate a harder material. If the durometer hardness is on the Shore D scale, add 50 to its value. Multiply the Shore A value or the modified Shore D value from the previous step by the constant 0.0235. Subtract 0.6403 from the result of the previous step.

Where can I buy dual durometer Shore parts?

Dual Durometer parts are available from Plan Tech where two different hardness material will be bonded together to form one part. This is extremely popular with rollers requiring a hard core to be used as a rolling bushing while the outside covering needs to be of a softer material to protect the product goods.

Which is the hardest polyurethane durometer to use?

The hardest scale in plastic, rubber, and polyurethane measurement is Shore D. Shore D can most commonly be associated with hard rubbers and plastics, but also some polyurethanes. Meridian Laboratory offers precision polyurethane parts in the Shore D scale to 75D. How Do You Measure Durometer?

How does the shore m deflect work on a durometer?

The Shore M indentor will deflect 0.0005 inches for every durometer point. At zero, the Shore A and Shore M indentors overlaid resemble below: It is important to note is that Type A and Type M durometer readings are not always the same, due to the geometric and thickness component to the hardness reading.

How does the shore hardness scale work on a durometer?

Step 1: Choose the appropriate Shore hardness scale to measure the hardness of your test sample. Step 2: Place your test sample on a flat, horizontal, and hard surface that is at least ¼-inch thick. Step 3: Hold your durometer with both hands and place it on your test sample.

Dual Durometer parts are available from Plan Tech where two different hardness material will be bonded together to form one part. This is extremely popular with rollers requiring a hard core to be used as a rolling bushing while the outside covering needs to be of a softer material to protect the product goods.

How to convert Shore-D durometer to Young’s modulus?

Shore-D to Young’s Modulus (in MPa): =EXP(( Shore-D Durometer + 50 )*0.0235-0.6403) Replace the ‘Shore-A Durometer’ or ‘Shore-D Durometer’ with either a number or the cell location of the value.

What does the term durometer mean in engineering?

The term durometer has been used both to describe hardness measurement, as well as the actual instrument or gauge used to test the material. A durometer gauge measures Shore hardness, which is also referred to as “durometer hardness”.
