What is the difference between bipolar and unipolar stepper motor?

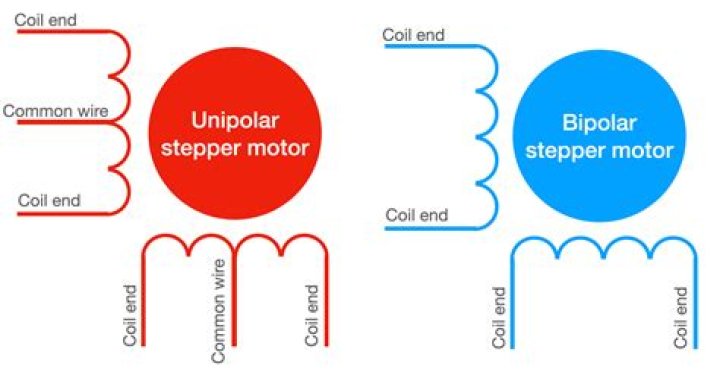

The main difference between “unipolar” and “bipolar” stepper motors is the center tap wire, which splits the full coils of the winding in half. A bipolar driver would require double the number of transistors than a unipolar driver in order to control the current flow in both directions.
Can you use a unipolar stepper motor as bipolar?
Luckily, you can use any unipolar motor as a more efficient bipolar motor with a simple xacto knife modification. The extra wires in a unipolar motor are taps for each of the coils. Simply ignoring these wires and using the two coils independently makes the motor more efficient at generating torque.
Is NEMA 17 bipolar or unipolar?
This NEMA 17-size hybrid stepping motor can be used as a unipolar or bipolar stepper motor and has a 1.8° step angle (200 steps/revolution). Each phase draws 1.2 A at 4 V, allowing for a holding torque of 3.2 kg-cm (44 oz-in).
What is bipolar stepper?
Bipolar stepper motors are a type of stepper motor with a single winding per phase and no center tap (unlike a unipolar stepper motor). The DC current in a winding needs to be reversed to reverse a magnetic pole and allow the motor to function.
What are the different types of stepper motor?
There are three main types of stepper motors, they are:
- Permanent magnet stepper.
- Hybrid synchronous stepper.
- Variable reluctance stepper.
What is bipolar stepper motor?
What is unipolar wire?
unipolar: A single conductor wire. bipolar: 2 conductor wires. tripolar: 3 conductor wires.
Which stepper motors need bipolar drives?
However, for unipolar stepper motors to have the same number of turns per winding as a bipolar motor, smaller diameter must be employed so that both windings may fit in the space of one….Driving Bipolar Stepper Motors. Copyright (C) 2000 G. Shearer.
| Sequence | Coil A | Coil B |
|---|---|---|
| 5 | – | – |
| 6 | – | off |
| 7 | – | + |
| 8 | off | + |
What is a bipolar stepper motor?
What is 4phase stepper motor?
The two facing pole form a single phase. Since there are 4 – phases, A through D, the motor is called a 4 – phase hybrid stepping motor. There ate 50 teeth on the outside of the rotor, with the teeth of rotor 1 and rotor 2 mechanically offset from each other by half a tooth pitch [14] [15].
What are the three types of stepper motor?
There are three main types of stepper motors:
- Permanent Magnet Stepper. PM steppers have rotors that are constructed with permanent magnets, which interact with the electromagnets of the stator to create rotation and torque.
- Variable Reluctance Stepper.
- Hybrid Syncronous Stepper.
