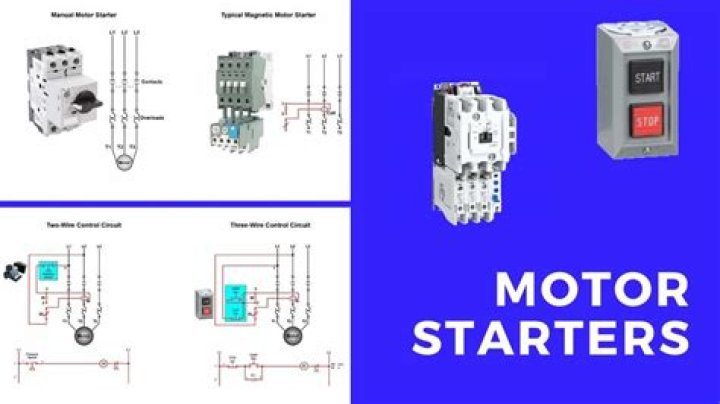

What is the difference between a manual and a magnetic motor starter?
Magnetic. Magnetic motor starters rely on electromagnets to close and hold contactors rather than the use of mechanical latching of on/off switches as used in manual starters. They are used in across-the-line applications and as reduced voltage starters for single- and three-phase motors.
What is the purpose of a manual start switch?
A manual starter is basically an “ON-OFF” switch with overload protection. Siemens manual starters and switches are used in many applications for local control of equipment in the industrial or construction markets, such as operating power saws, pumps, fans, conveyors, blowers, packaging, sorting and other machinery.
What is manual starter?
Manual motor starters, also known as motor protection circuit breakers (MPCBs) or manual motor protectors (MMPs), are electromechanical protection devices for the main circuit. They are mainly used to switch motors ON/OFF manually and to provide fuseless protection against short-circuit, overload and phase failures.
What is the function of a motor starter?
A motor starter provides defense by first controlling the electrical output of your device or equipment at its initial point of operation (when you turn it on or it engages). From that point, the starter continues to protect your system, operating as a fail-safe.
What are the basic components of a motor starter?
Starter Motor components & their functions:
- Armature. The armature is an electromagnet, mounted on the drive shaft and bearings for support.
- Commutator.
- Brushes.
- Solenoid.
- Plunger.
- Lever Fork.
- Pinion.
- Field Coils.
What is motor starter switch?
A motor starter is an electrical device that is used to start & stop a motor safely. Similar to a relay, the motor starter switches the power ON/OFF & unlike a relay, it also provides a low voltage & overcurrent protection.
Why does a 240v manual starter require 2 load contacts?
A single phase motor operates on 240 V. Why should a starter that contains two load contacts be used to control this matter? The stop button is used to reset a tripped manual motor starter.
