What is the difference between 2 way and 3-way switch?
In a normal switch, the two terminals are either connected (as shown) or disconnected. When they are connected, the switch is “on.” In a three-way switch, the top terminal connects to one or the other of the bottom two terminals.

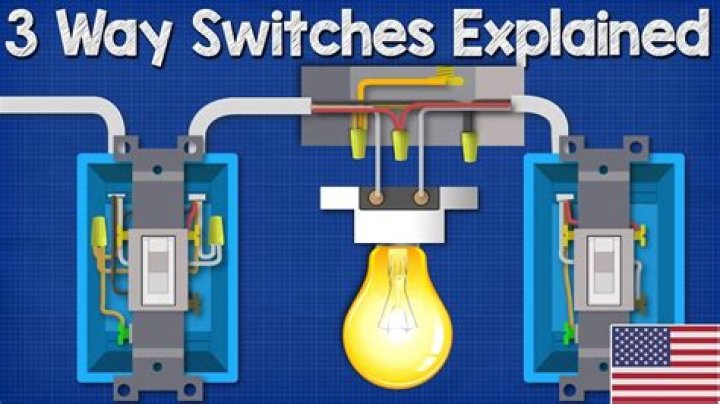

What is the 3-way switch?
A 3-way switch is larger than a single pole switch and has three screw terminals for wiring connections, plus a ground. Two of these take traveler wires that go from one switch to the other. For the third terminal, one switch is connected to the hot supply wire while the other switch is joined to the light.
Can you use a three-way switch as a single pole switch?
To convert a 3-way switch to single pole, one of the traveler wires is removed from the switch. In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. 3-way switches can be converted to single pole in several configurations.
Can I use a 4 way switch as a 3 way?
3 Answers. Sure, a 4-way is essentially two 3-ways in one device. Usually a 4 way switch has 2 (IN) screws and 2 (OUT) screws. Using one of the (IN) terminals is the same as the common terminal on a 3 way.
How can you tell if a switch is 4 way or 3 way?
A three-way switch has three terminals; a four-way has four. These control a light from two or three switch locations, such as at the top and bottom of a stairwell, at either end of a hallway, or in a large room with multiple entrances.
What is the common wire in a three-way switch?
Black wire
Black wire: This is a hot wire that carries electricity from the power source to the first switch in a typical 3-way setup. It’s also called the “common wire” or the “line wire.” Unless the breaker is off, this black wire is always hot.
When should you use a 3-way switch?
Three-way switches are commonly used to control a light fixture from two different locations. For example, a long hallway or stairway might use a pair of three-way switches at each end so that lights can be turned on when approaching one end of the hall or stairway, then shut off from the other end.
Do you need a special switch for a 3-way switch?
The key ingredient is a special type of switch called a “three-way” switch. You’ll need two of them, one to replace the existing switch and another for the new switch location. With these, you’ll have the convenience of turning a light on and off from two spots.
