What is the definition of diametral pitch?

What is the definition of diametral pitch?

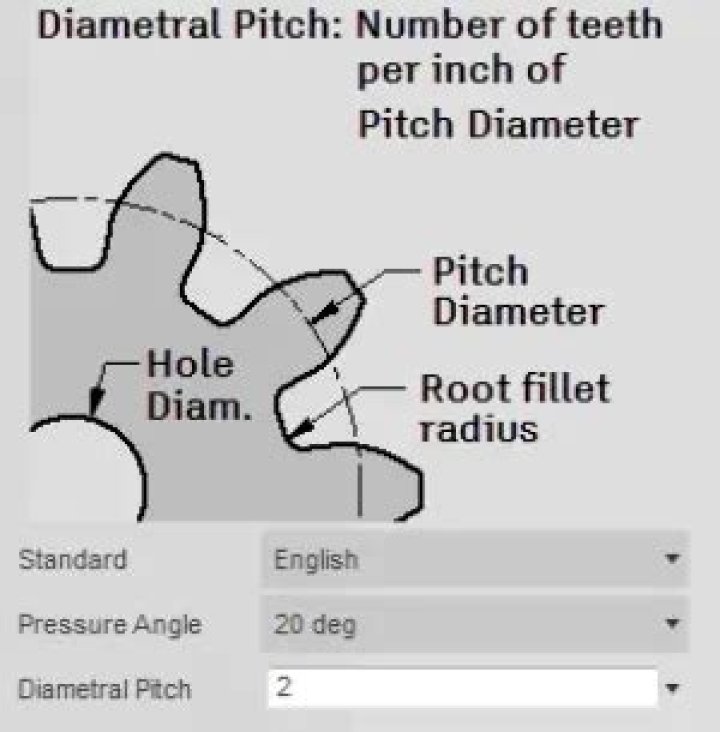

The diametral pitch of a gear is the number of teeth in the gear for each inch of pitch diameter. Therefore, the diametral pitch determines the size of the gear tooth.

What is diametral pitch formula?

Pitch Diameter and the Diametral Pitch. N = (PD) x (DP) Number of Teeth. Outside Diameter and the Diametral Pitch.

What is normal base pitch?

This base pitch is equal to the circular pitch of the gear on the base circle (see Fig. 1). For a helical gear, the base pitch can be described in either the transverse or normal plane, and is called the transverse base pitch (TBP) or normal base pitch (NBP), respectively.

What is the difference between circular pitch and diametral pitch?

To find the circular pitch of a gear, divide the circumference around the pitch circle (circumference = pi x pitch diameter) by the number of teeth. Diametral pitch, on the other hand, indicates the number of teeth per inch of pitch diameter.

What is Dedendum in gear?

Definition of dedendum : the root of a gear tooth also : the distance between the dedendum circle and pitch circle of a gear wheel or rack — compare addendum.

Is diametral pitch the same as module?

Module m: Pitch diameter divided by number of teeth. The pitch diameter is usually specified in inches or millimeters; in the former case the module is the inverse of diametral pitch.

What is a base pitch?

Base Pitch (BP) equals the arc distance along the circumference of the base circle between two adjacent profiles running in the same direction. A constant Base Pitch (BP) can be delivered by changing the circular pitch and cosine of the pressure angle. Changing the number of teeth can also change the circular pitch.

What is the relationship between diametral pitch and module?

Module pitch is always in millimeters. 1 Diametral pitch = 25.400 Module.
