What is the best type of grounding rod?
Galvanized steel
Galvanized steel, copper-bonded steel and stainless steel are the most common materials considered for grounding systems in most parts of the world. Galvanized steel rods are often the go-to material because they are cheap, allowed by the NEC and UL listed.
What are the 2 types of grounding?
There are two kinds of grounding: (1) electrical circuit or system grounding, and (2) electrical equipment grounding. Electrical system grounding is accomplished when one conductor of the circuit is intentionally connected to earth.
What is the most common type of grounding electrode?

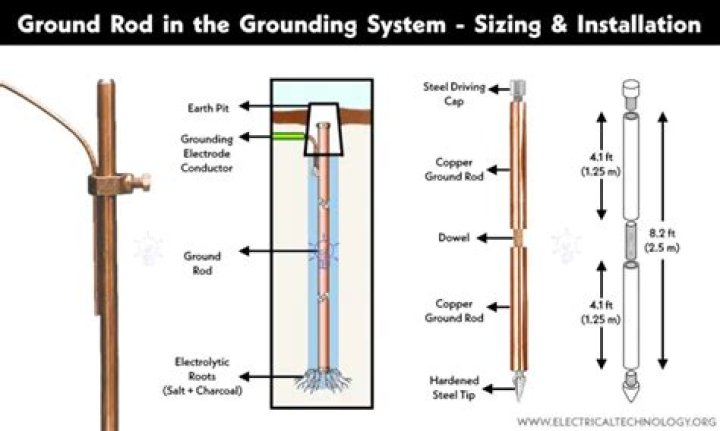

Driven Rod: The standard driven rod or copper-clad rod consists of an 8 to 10 foot length of steel with a 5 to 10-mil coating of copper. This is by far the most common grounding device used in the field today.
What is an electrical grounding rod?
Ground rods, also known as grounding electrodes, are used to connect the grounding system of electrical systems to earth ground. Ground rods are very good conductors of electricity and allow any dangerous electricity to flow to ground, taking the danger away from you and the electrical panel.
Should I use copper or galvanized ground rod?
If the facility being grounded has a life expectancy of less than 15 years, a galvanized ground rod is appropriate and will provide the most cost-effective solution. For installations with a longer service life, copper-bonded ground rods are the best fit.
What is copper bonded ground rod?
Copper-bonded ground rods have a high carbon steel core that is suitable for deep driving. A layer of nickel and then a coating of copper is electroplated on the steel core to provide corrosion protection This coating is not subject to the risk of bending or cracking.
What is grounding and its type?
Resistance Grounding is when an electrical power system has a connection between neutral line and the ground through resistor. Here, resistor is used to limit the fault current through a neutral line. There are two types of resistance grounding: high resistance grounding and low resistance grounding.
What are the various types of ground?
There are different grounds: signal ground, circuit ground, and earth ground.
Are grounding rods solid copper?
Solid copper ground rods are very corrosion resistant (except when faced with salts) and are also very conductive. However, you will rarely see solid copper outside of the Middle East or similar environments because copper is a ductile, soft metal that often bends when driven into soil other than sand.
What is better copper or galvanized ground rod?
Can galvanized wire be used for grounding?
Either coating is capable of safely conducting fault to ground. “With regards to life expectancy, state departments of transportation have used buried galvanized steel culvert bridges for decades.
