What is the advantage of transmission gates compared to pass transistors?
*The combination of both an PMOS and NMOS in Transmission Gate arrangement avoids the problem of reduced noise margin, increase switching resistance and increased static power dissipation (caused by increased Threshold Voltage), but requires that the control and its complement be available.
How many pass transistors required for design of XOR gate using transmission?
The XOR gate utilizes six transistors to achieve a compact circuit design and was fabricated using the 130 nm IBM CMOS process.
How many transistors are in a transmission gate?
CMOS Transmission Gate Two MOS transistors are connected back-to-back in parallel with an inverter used between the gate of the NMOS and PMOS to provide the two complementary control voltages.

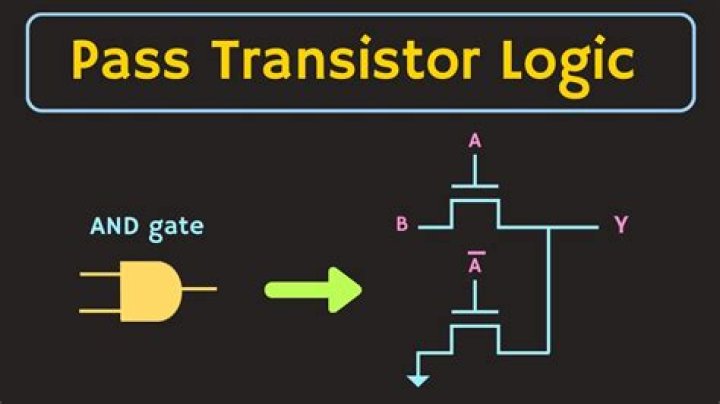

What is pass transistor gates?
In electronics, pass transistor logic (PTL) describes several logic families used in the design of integrated circuits. It reduces the count of transistors used to make different logic gates, by eliminating redundant transistors. Each transistor in series is less saturated at its output than at its input.
Why pass transistors are so called?
1 Answer. In the context of linear voltage regulators, the pass element (transistor) is controlled by negative feedback to achieve regulation. Q1 passes output current in the direction of the arrow (and that is the reason it is called the pass transistor).
What is the disadvantage of transmission gate?
Time-skew problems can lead to short circuits. Slower speed. Due to charge sharing problem, not more than 3 TG can be connected in cascade. After 3 TG a buffer circuit is required.
What is the use of transmission gates?
Transmission gates are typically used as building blocks for logic circuitry, such as a D Latch or D Flip-Flop. As a stand-alone circuit, a transmission gate can isolate a component or components from live signals during hot insertion or removal.
Why pass transistor passes Strong 0 and weak 1?
Output capacitor load remains at 4V. From 4.1V till 5V, transistor is OFF, output load is charged till 4V only. So, NMOS pass weak/degraded logic 1 because of threshold drop. Similarly PMOS is good at passing logic 1, but pass weak logic 0.
How does a transmission gate work?
Basic Operation A transmission gate, or analog switch, is defined as an electronic element that will selectively block or pass a signal level from the input to the output. The control gates are biased in a complementary manner so that both transistors are either on or off.
How the pass gates are formed?
In principle, a transmission gate is made up of two field-effect transistors, in which – in contrast to traditional discrete field-effect transistors – the substrate terminal (bulk) is not connected internally to the source terminal.
What is pass gate in digital electronics?
Basic Operation A transmission gate, or analog switch, is defined as an electronic element that will selectively block or pass a signal level from the input to the output.
