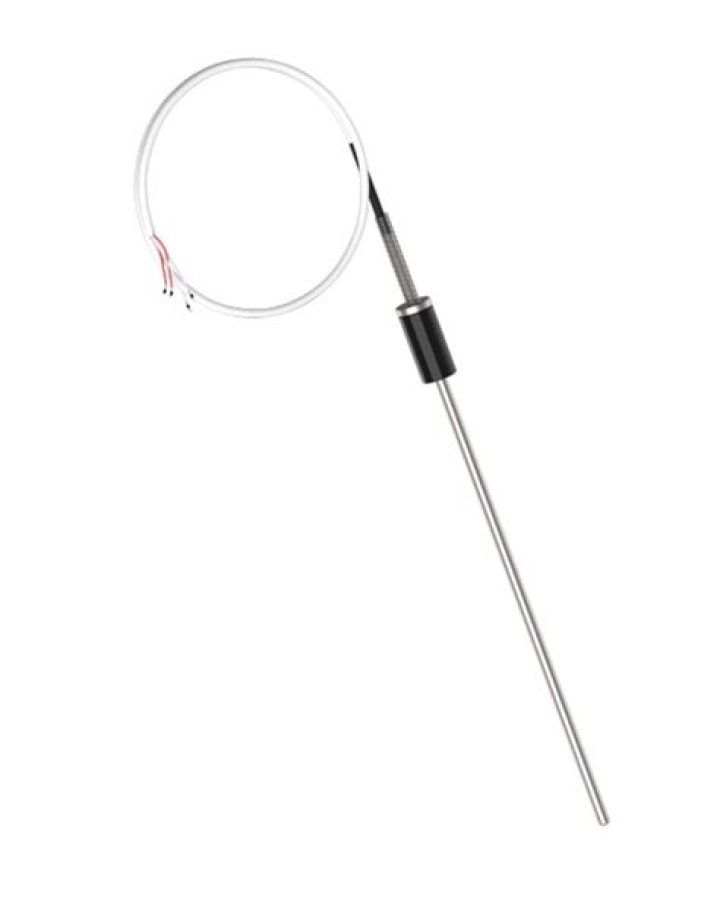

What is the accuracy of a platinum resistance thermometer?
In general, PRTs can have high accuracy (0.01 °C), stability, and repeatability across a wide range of temperatures from -200 °C to 500 °C.
How accurately can we measure temperature using a RTD sensor?
The DIN RTD Accuracy Standard The prevalent accuracy accepted for RTDs is the DIN standard curve. It is based on the R v. T ratio of a PT100 sensor. The standard specifies a base resistance of 100 Ω at 0°C with an Alpha (α) of 0.00385.
How accurate is PT100?
It uses PT100 and PT1000 platinum resistance thermometers (PRTs) and an innovative design to deliver 0.001 °C resolution and 0.015 °C accuracy measurements from –200 °C to +800 °C.
Why is platinum used in platinum resistance thermometer?
The most reproducible type of sensor is made from platinum because it is a stable unreactive metal which can be drawn down to fine wires but is not too soft. The length and diameter of the platinum wire used in a thermometer are often chosen so that the resistance of the device at around 0 ºC is 100 ohms.
What is the range of platinum resistance thermometer?
— 200° to 1000°C.
The platinum resistance thermometer is a versatile instrument for temperature measurement in the range from — 200° to 1000°C.
How do you choose the right temperature sensor?
Several factors must be considered when selecting the type of sensor to be used in a specific application: temperature range, accuracy, response time, stability, linearity, and sensitivity.
Why Platinum is used in RTD?
Platinum film is used in the construction of RTDs because it is stable, provides repeatable and measurable results and has a broad temperature range. The way RTDs are constructed makes them more rugged and reliable in harsh conditions which is why it can be used in industrial and critical applications.
What is the resistance of RTD at room temperature?
around 110 ohms
Set your multimeter in resistance mode. Check the readings across the terminals of the RTD. At room temperature the reading should be around 110 ohms.
Does Pt100 need calibration?
Thermometer probes like PT100s, PRTs, and RTDs need to be calibrated regularly. Temperature is always on the move through time, meaning any probes that are measuring temperature need to be calibrated to be accurate.
Why platinum is used in Pt100?
Platinum is the most common material for RTD sensors. Platinum has a reliable, repeatable, and linear temperature-resistance relationship. The number “100” in the name indicates that is has a resistance of 100 ohms in 0°C (32°F) temperature.
