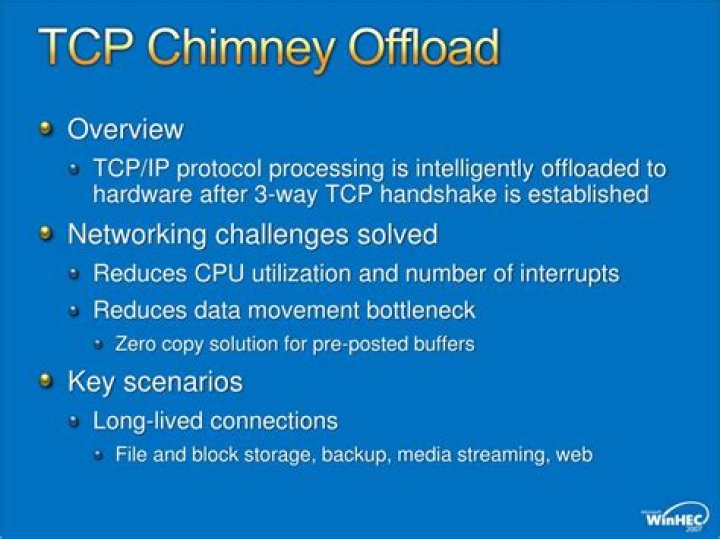

What is TCP Chimney Offload feature?
TCP Chimney Offload is a networking technology that helps transfer the workload from the CPU to a network adapter during network data transfer. Both TCP/IPv4 connections and TCP/IPv6 connections can be offloaded if the network adapter supports this feature.
Why disable TCP Chimney Offload?
TCP chimney offloading and receive window auto-tuning are frequently disabled as part of the process of troubleshooting a network-related issue on a Windows server. In some cases, disabling these can improve network performance in general and/or iSCSI performance specifically.
How do you disable TCP Chimney tcpip offload engine toe or TCP segmentation offload TSO?
- From the Control Panel, open Network Connections.
- Open the properties page for the network connection being used.
- Click Configure (See Figure 1) Figure 1.
- On the Advanced tab, change the Value of all ‘Offload’ and Receive Side Scaling settings to 0, Disabled or Off (See Figure 2) Figure 2.
- Click OK to save changes.
What is offload state in netstat?
The netstat -t command generates a list of the current connection offload state. The offload state refers to the TCP Chimney Offload, which is a feature that transfers the network workload from the processor to the network adapter during data transmissions.
What is TCP IP offload?
Authored by: Kyle Laffoon. TCP offload engine is a function used in network interface cards (NIC) to offload processing of the entire TCP/IP stack to the network controller. By moving some or all of the processing to dedicated hardware, a TCP offload engine frees the system’s main CPU for other tasks.
How do I disable Task Offload?
Disable the global Task Offload Settings by:
- Click Start and command prompt as administrator.
- Type- “netsh int ip show offload” (without parenthesis). This step will display the enabled offload tasks.
- Disable all Task loads by typing the command- “netsh int ip set global taskoffload=disabled” (without parenthesis)
What is Max SYN retransmissions?
The Maximum Syn Retransmissions setting specifies the maximum number of times that the system resends a SYN when it does not receive a corresponding SYN-ACK. In BIG-IP version 10. x, the TCP profile supports values of more than 12 for either setting.
What is segmentation in TCP?
Segmentation is the process of carving up information into smaller pieces. TCP receives data from an application and segments the data into pieces. This segmentation is necessary so that the information can be placed inside the TCP data field. Once the data is segmented it is encapsulated within TCP.
What is LRO and Gro?
LRO (Large Receive Offload) is supported by Mellanox hardware and drivers, and can be controlled using Ethtool. Configuration. LRO on Old Kernels. LRO on New Kernels. Generic Receive Offload (GRO)
What is the difference between netstat and netstat?
netstat will display all of the TCP connections in every State except for LISTENING. netstat -a will display all of the TCP connections in every State (including LISTENING), and it will also display the UDP listening ports.
How does TCP offload work?
TCP offload engine is a function used in network interface cards (NIC) to offload processing of the entire TCP/IP stack to the network controller. By moving some or all of the processing to dedicated hardware, a TCP offload engine frees the system’s main CPU for other tasks.
How do I get rid of large send offload?
Click the Advanced tab. Scroll down to IPv4 Large Send Offload, or Large Send Offload v2 (IPV4), and highlight the item. On the right portion of the display, select Disabled. Click OK.
