What is static excitation generator?

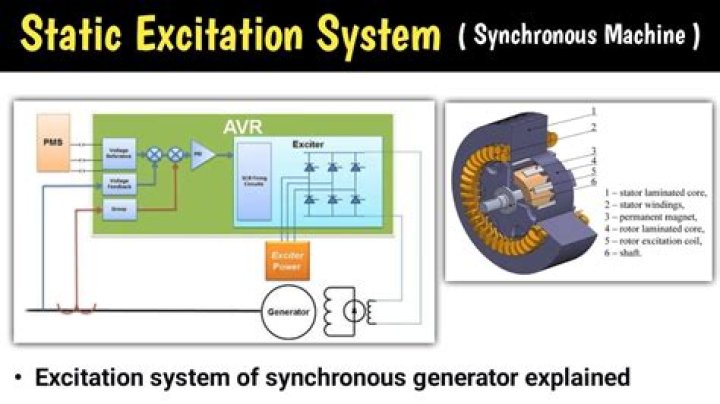

Principle of Static Excitation System In Static Excitation System, power for providing field excitation is derived from the Generator output terminals. A transformer know as Excitation Transformer, is connected to the output terminals of Generator to step down the voltage to required voltage level usually 415 V AC.
What is excitation in synchronous generator?
Excitation in an electrical machine means production of magnetic flux by passing current in the field winding. In order to excite the field winding on the rotor of the synchronous machine the direct current is required.
How does a static exciter work?
Static Exciter A number of high power thyristors rectify the AC current to produce a DC current which feeds to the rotor through slip rings. This eliminates the operation and maintenance problems associated with having another rotating machine.
What is static excitation of alternator?
Static Excitation of an Alternator is one of the Excitation method. In the event of sudden changes in demand on the generator, the excitation system must respond rapidly, making changes in the voltage that drives current through the field winding.
Why do synchronous generators need excitation?
Synchronous motor excitation refers to the DC supply given to rotor which is used to produce the required magnetic flux. CASE 2: If the field current is not sufficient enough to produce the required air gap flux as demanded by V, additional magnetizing current or lagging reactive VA is drawn from the AC source.
What is importance of excitation system of a synchronous generator?
Excitation system is an important part of AC synchronous generator, which controls the voltage and reactive power of the synchronous generator. In addition, the speed control system controls the speed (frequency) and active power of the prime mover and generator. Both are the main control systems for the generator set.
Why do synchronous generators need DC excitation?
The primary reason lies in the principle of operation of Synchronous machines. The rotor acts as an electromagnet with a constant flux and gets interlocked with the rotating flux of stator to provide a constant speed rotation. The rotor needs to have a constant flux and that’s why the dc excitation is provided.
How many types of excitation are there?
There are nineteen different excitation types in three major groups: Direct Current Commutator Exciters (type DC), Alternator Supplied Rectifier Excitation Systems (type AC) and Static Excitation Systems (type ST).
Is rectifier a static exciter?
Static excitation: This three-phase voltage is fed to the three-phase full-bridge rectifier. The controlled unit power output is delivered to the field winding of the main alternator through brushes and slip rings.
Why excitation is required for generator?
The main purpose of exciter in a generator(alternator) is to provide stationary rotating magnetic field. Which is used to induce the e.m.f in the armature coil. So, DC power is given to exciter and the exciter is nothing but a coil, and the exciter creates a magnetic field.
When excitation is increased the synchronous generator operates at?
In synchronous generator, inverted V curve is drawn between field current on X-axis and power factor on Y-axis. At critical excitation the power factor is unity. If excitation is decreased, the generator operates at leading power factor and if excitation is increased, the generator operates at lagging power factor.
