What is spanning tree in mathematics?

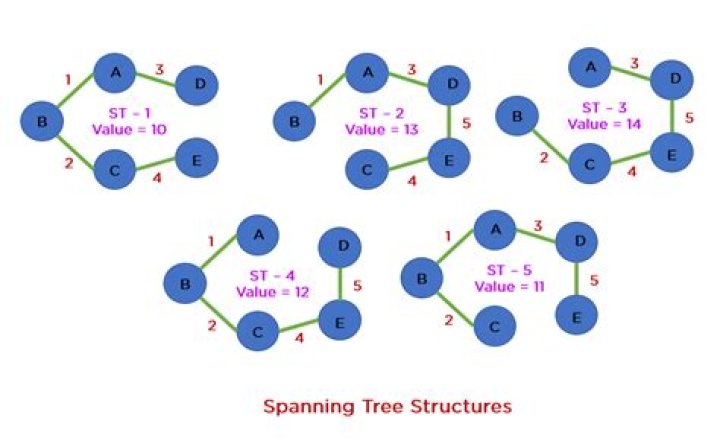

A spanning tree is a connected graph using all vertices in which there are no circuits. In other words, there is a path from any vertex to any other vertex, but no circuits. Some examples of spanning trees are shown below.

What is minimum spanning trees in discrete mathematics?

A spanning tree with assigned weight less than or equal to the weight of every possible spanning tree of a weighted, connected and undirected graph G, it is called minimum spanning tree (MST). The weight of a spanning tree is the sum of all the weights assigned to each edge of the spanning tree.

How do you find the minimum spanning tree on a graph?

Kruskal’s Minimum Spanning Tree Algorithm | Greedy Algo-2

  1. Sort all the edges in non-decreasing order of their weight.
  2. Pick the smallest edge. Check if it forms a cycle with the spanning tree formed so far. If cycle is not formed, include this edge.
  3. Repeat step#2 until there are (V-1) edges in the spanning tree.

How do you find the minimum spanning tree in complete graph?

When the Graph Is a Complete Graph. different labeled trees. Now to find the minimum spanning tree among all the spanning trees, we need to calculate the total edge weight for each spanning tree. A minimum spanning tree is a spanning tree with the smallest edge weight among all the spanning trees.

What is minimal spanning tree in graph theory?

A minimum spanning tree (MST) or minimum weight spanning tree is a subset of the edges of a connected, edge-weighted undirected graph that connects all the vertices together, without any cycles and with the minimum possible total edge weight. There are many use cases for minimum spanning trees.

What is spanning trees explain spanning tree in detail with Example 7?

A spanning tree is a tree that connects all the vertices of a graph with the minimum possible number of edges. Thus, a spanning tree is always connected. A spanning tree is always defined for a graph and it is always a subset of that graph. Thus, a disconnected graph can never have a spanning tree.
