What is SHELL command in AutoCAD?

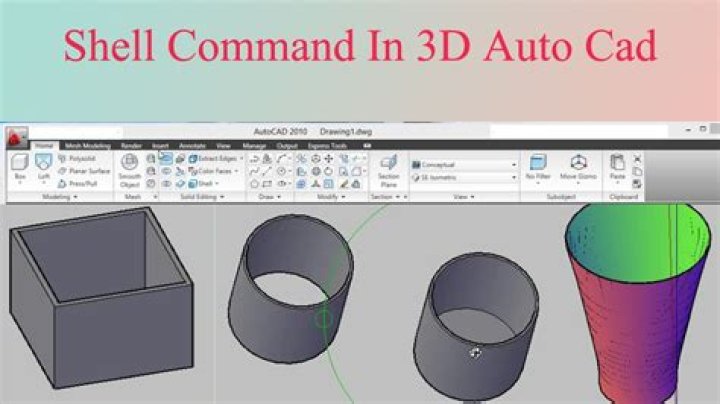

The SHELL sub-command converts a 3D solid into a hollow shell with a wall of wanted thickness. To use this command in AutoCAD. Activate the command (with a click on the shell icon shown on the image above) Select a solid.

How do I use the SHELL tool in AutoCAD?

To Create a 3D Solid Shell

  1. Click Home tab Solid Editing panel Solid Edit drop-down Shell. Find.
  2. Select the 3D solid object.
  3. Select one or more faces to be excluded from shelling and press Enter.
  4. Specify the shell offset distance.
  5. Press Enter to complete the command.

What is revolve command in AutoCAD?

The Revolve command in AutoCAD 3D is used to create a 3D solid or surface by sweeping the object through its axis at a predefined angle. The paths and objects that can be revolved are: Planar. Non-planar. Open.

What is the difference between a fillet and a round?

An inside corner is called a fillet and an outside corner is called a round; you can create both using the FILLET command.

What is Loft command in AutoCAD?

The loft command in AutoCAD is used to create 3D solid or surface. The 3D solid or surface is formed within the space between various cross sections. The cross-sections determine the outer shape of the solid or surface.

How do I use solid edit in AutoCAD?

Using grips to edit solids Grip-editing is one of the most direct ways to modify an object. To edit a 3D solid by using grips, select the 3D solid when no command is running, and then select the grip that you want to use to edit the solid.

How do you cut out a shape in AutoCAD?

To Trim an Object

  1. Click Home tab Modify panel Trim. Find.
  2. Select the objects to serve as cutting edges. Press Enter when you finish selecting the cutting edges.
  3. Select the objects to trim and press Enter a second time when you finish selecting the objects to trim.

What is fillet and shell command?

The fillet command is used to create rounded edges between the adjacent lines and faces in 2D and 3D. Type F on the command line or command prompt and press Enter. Select the first object. Type R or Radius.

What are commands in AutoCAD?

Basic AutoCAD Commands

  • L. It can be used for making simple lines in the drawing.
  • C. It is the command used for making a circle in AutoCAD.
  • PL. This command can be used to make a Polyline in your drawing.
  • REC. This command will make a rectangle in AutoCAD.
  • POL.
  • ARC.
  • ELLIPSE.
  • REG.

What is fillet command in AutoCAD?

The fillet command is used to create rounded edges between the adjacent lines and faces in 2D and 3D. It is also used to connect two tangent arcs in 2D. Specify the radius of the Fillet and press Enter. Select the second object.
