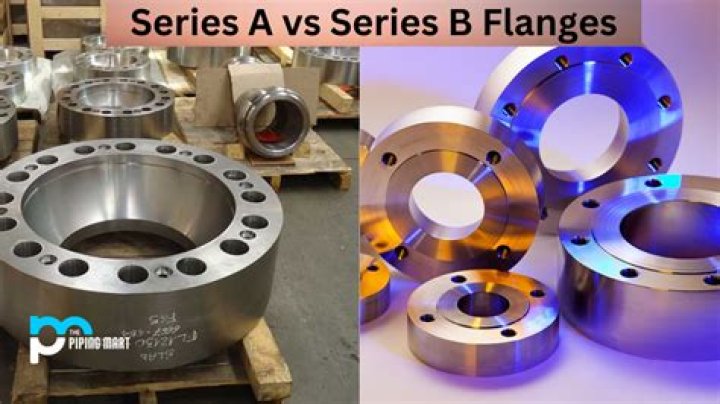

What is Series A flange?
flanges are covered by standard B16. 5 for sizes up to 24″ nominal pipe. Sizes 26″ and bigger are covered by B16. 47 series A or series B for weldneck and blind flanges. Series A flange is heavier, thicker and cost more whereas series B flange has more bolt holes and is lighter cheaper than series A.
What is difference between Series A and B flanges?
ASME B16 47 Series A flanges are thicker, heavier and stronger than their Series B counterparts. They also can often handle more external loading than Series B. Series A flanges tend to be more costly than Series B flanges. Both Series A and B define weld neck flanges and blind flanges in raised face type.
What do the numbers mean on a flange?
The key sizes for a pipe flange are: the nominal size (i.e. the bore size of the flange, to match the bore size of the connecting pipe) the flange rating (which designates the pressure/temperature performance of the flange, i.e. 150#, 300#, 400#, up to 2500#)
How are flanges classified?
Steel pipe flanges are classified as per ASME B16. 5 standard. The pressure rating of flange ranges from 150# to 2500#. The term “lb”, “class” and “#” are used interchangeably to designate the pressure rating of the flange.
How do you determine flange pressure rating?
How to select the right flange rating? The term “flange rating” (or class) refers to the maximum pressure (in psi or bars) that a flange withstands at increasing temperatures. Flanges with a higher rating (class) are stronger than flanges with lower ratings, as they bear more pressure at increasing temperatures.
What is the difference between ASME and ANSI flanges?
ANSI Flanges are manufactured based on standards developed by organizations and ASME Flanges are based on codes and standards for mechanical devices. The ANSI Flanges are designed based on approx. 9500 standards whereas ASME Flanges manufactured on 600 codes and standards for different mechanical devices.
What does PN mean in flanges?
Pressure Nominale
‘PN’ stands for Pressure Nominale and prefixes the pressure rating, e.g. a PN16 flange is designed to operate up to 16 bar. Typical ratings include PN6, PN10, PN16, PN25, PN40, PN64, PN100. The American ANSI standard refers instead to a pressure / temperature rating termed ‘Class’.
What is flange in mechanical engineering?
A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.
How many types of flange are there?
Flange types 5 are: Welding Neck, Slip On, Socket Weld, Lap Joint, Threaded and Blind flange. Below you will find a short description and definition of each type, completed with an detailed image.
