What is saturation in MOSFET?
First of all, “saturation” in mosfets means that change in VDS will not produce significant change in the Id (drain current). You can think about MOSFET in saturation as a current source. That is regardless of the voltage across VDS (with limits of course) the current through the device will be (almost) constant.
What is the condition of saturation of N channel enhancement MOSFET?

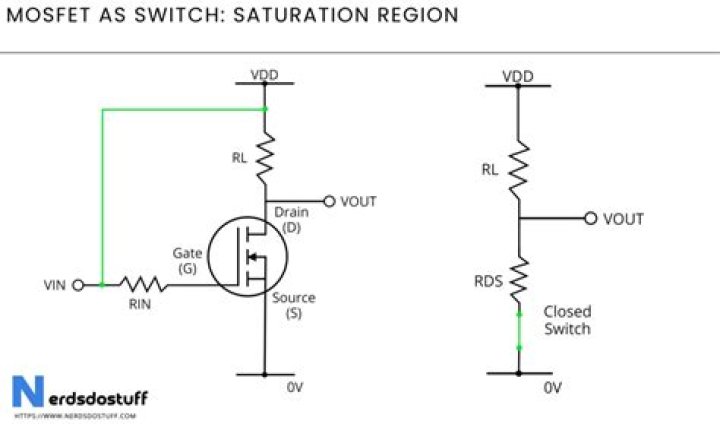

In saturation region, the MOSFETs have their IDS constant inspite of an increase in VDS and occurs once VDS exceeds the value of pinch-off voltage VP. Under this condition, the device will act like a closed switch through which a saturated value of IDS flows.
What is MOSFET explain characteristics of enhancement type MOSFET?
MOSFETs are usually classified into two types. The MOSFET that is basically in OFF condition which requires a certain amount of voltage at the terminal gate to turn ON is referred to as Enhancement MOSFET. Due to the application of gate voltage the channel among the terminal of drain and source gets less resistive.
Why does MOSFET go into saturation?
In a long channel MOSFET, the width of the pinch-off region is assumed small relative to the length of the channel. Thus, neither the length nor the voltage across the inversion layer change beyond the pinch-off, resulting in a drain current independent of drain bias. Consequently, the drain current saturates.
What are the main constructional differences between a MOSFET and a BJT?
Differences between BJT and MOSFET
| BJT | MOSFET |
|---|---|
| The input impedance is low | The input impedance is high |
| The switching frequency of BJT is low | The switching frequency of MOSFET is high |
| It is used for the low current application | It is used for the high current application |
Why does saturation occur in MOSFET?
Why MOSFET is not used in saturation?
Detailed Solution. MOSFET acts as a constant current source in the saturation region. This is because after increasing VDS to such a level that pinch-off occurs, the gate and the drain voltages lose its control over the current flowing. So, beyond that value of VDS, the current is almost constant.
What causes saturation in power MOSFET?
This happens when Vce. for a MOSFET, saturation means that the transistor DOES determine the drain current Id. This happens when Vds>Vds,sat.
Why do MOSFET saturate?
What is the difference between enhancement and depletion type MOSFET?
Enhancement MOSFET does not conduct at 0 volt, as there is no channel in this type to conduct. Depletion MOSFET conducts at 0 volt. Moreover when positive cut-off gate voltage is applied to depletion MOSFET, hence it is less preferred. Depletion MOSFET logic operations are opposite to enhancement type of MOSFETs.
How does an enhancement MOSFET work?
In an enhancement-mode MOSFET, the electrostatic field created by the application of a gate voltage enhances the conductivity of the channel, rather than deplete the channel as in the case of a depletion-mode MOSFET.
