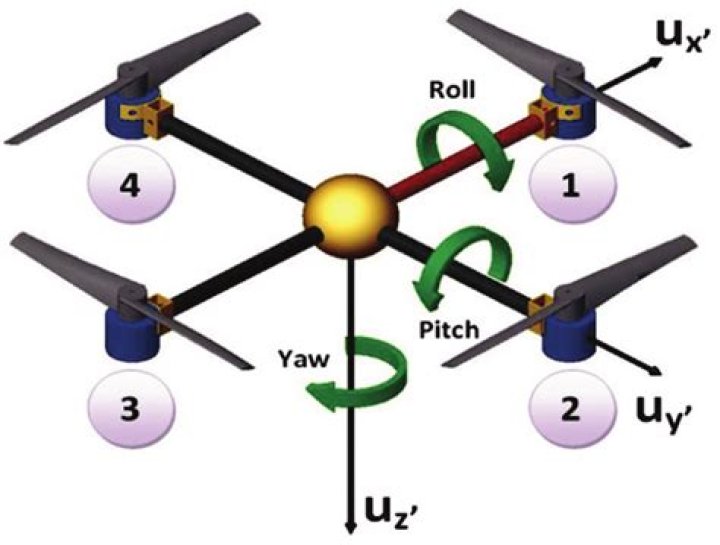

What is roll pitch and yaw in quadcopter?
Aircrafts are able to rotate in three different dimensions: roll, pitch, and yaw. We’ll cover each one, but to start, “yaw” refers to the direction the front of your drone (or even a plane or car) is facing when rotating either clockwise or counterclockwise (or left and right if you prefer) on its vertical axis.
Do drones have gyros?
Drones today use three and six axis gyro stabilization technology to provide navigational information to the flight controller, which make drones easier and safer to fly. Gyro stabilization technology is one of the most important components, allowing the drone to fly super smooth even in strong winds and gusts.
How does a quadcopter control yaw?
A quadrotor adjusts its yaw by applying more thrust to rotors rotating in one direction. A quadrotor adjusts its pitch or roll by applying more thrust to one rotor (or two adjacent rotors) and less thrust to the diametrically opposite rotor.
What is the different between pitch and roll in drone movement?
PITCH – This moves the Quadcopter on the side axis, so it would tilt it up and down from front to back. ROLL – This moves the Quadcopter on the long ( longitudinal) axis, so it would tilt side to side. This causes the vehicle to move to one side or the other depending on the tilt – banking left or right.
What is yaw in drone?
Yaw. Yaw is simply defined as the rotation of a UAV with respect to the center axis. If you were looking down on a drone from above, yaw refers to the movement of the drone clockwise or counterclockwise.
What is the difference between pitch roll and yaw?
Pitch is the rotation of a vehicle about the transverse axis. Roll is the rotation of a vehicle about the longitudinal axis. Yaw is the rotation of a vehicle about the vertical axis.
What is ESC drone?
Electronic speed controllers (ESCs) are devices that allow drone flight controllers to control and adjust the speed of the aircraft’s electric motors. A signal from the flight controller causes the ESC to raise or lower the voltage to the motor as required, thus changing the speed of the propeller.
What makes a drone yaw?
Yaw – This is the rotating or swiveling of the head of the quadcopter either to right or left. It is the basic movement to spin the quadcopter. On most drones, it is the achieved by using the left throttle stick either to the left or right.
What is yaw control in drone?
What is yaw and pitch control?
An aircraft in flight is free to rotate in three dimensions: yaw, nose left or right about an axis running up and down; pitch, nose up or down about an axis running from wing to wing; and roll, rotation about an axis running from nose to tail.
What is the difference between yaw and roll?
Roll is the rotation of a vehicle about the longitudinal axis. Yaw is the rotation of a vehicle about the vertical axis.
