What is ring main unit?

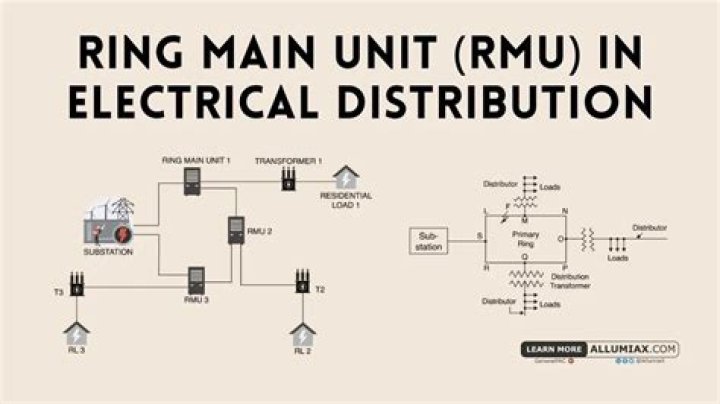

In an electrical power distribution system, a ring main unit (RMU) is a factory assembled, metal enclosed set of switchgear used at the load connection points of a ring-type distribution network. This type of switchgear is used for medium-voltage power distribution, from 7200 volts to about 36000 volts. …
What is sf6 Ring Main Unit?
It is an important switch equipment for ring network power supply and terminal power supply. There are five advantages for ring main unit totally: 1, outdoor, fully insulated, fully sealed structure, can adapt to any harsh environment.
What is 11kv RMU?
The RMU has a completely sealed system with a stainless steel tank containing all the live parts and switching functions. Compact substation we also provide ABB / Schneider compact substation transformer / breaker in enclosure for compactness and better protection.
What is the difference between switchgear and ring main unit?
Ring main unit is a compact, sealed and enclosed type of switchgear. These are utilized for medium voltage power distribution. Complete switchgear simply means, assembly of needed switching devices. It also includes a protection device and a metering device.
Why is RMU used?
purpose. Ring main unit is used in a secondary distribution system. It is basically used for an uninterrupted power supply. Alongside, it also protects your secondary side transformer from the occasional transient currents.
What is the advantage of ring main system?
Advantages of ring main distribution system There are fewer voltage fluctuations at consumer’s terminal. The system is very reliable as each distribution transformer is fed with two feeders.
What is the full form of SF6?
Sulphur hexafluoride (SF6) is a man-made gas comprising of one sulphur and six fluoride atoms.
What is the function of SF6 circuit breaker?
Instead of oil, air, or a vacuum, a sulfur hexafluoride circuit breaker uses sulfur hexafluoride (SF6) gas to cool and quench the arc on opening a circuit. Advantages over other media include lower operating noise and no emission of hot gases, and relatively low maintenance.
How many sockets can a ring main have?
There is no limit to the number of sockets you can have on a ring main but there is a limit to the number of spurs you can have from those sockets or from the wiring between them. If you would like to know how to add a spur to an existing ring main, see our project on adding an extra socket.
How does a ring main work?
A ring main, or final circuit, is exactly what it says on the tin. It is a ring of cables, usually 2.5mm carrying twin and earth wires, circling your home, carrying the mains electricity to sockets on the way. It gets the power from the consumer unit and delivers it to the sockets.
What are the disadvantages of radial distribution system?
Major drawbacks of a radial distribution system are,
- It is not highly reliable.
- A fault in the feeder will result in supply failure to associated consumers as there won’t be any alternative feeder to feed distributors.
- Voltage is affected much at far away load from the substation.
