What is polycrystalline diamond compact bit?

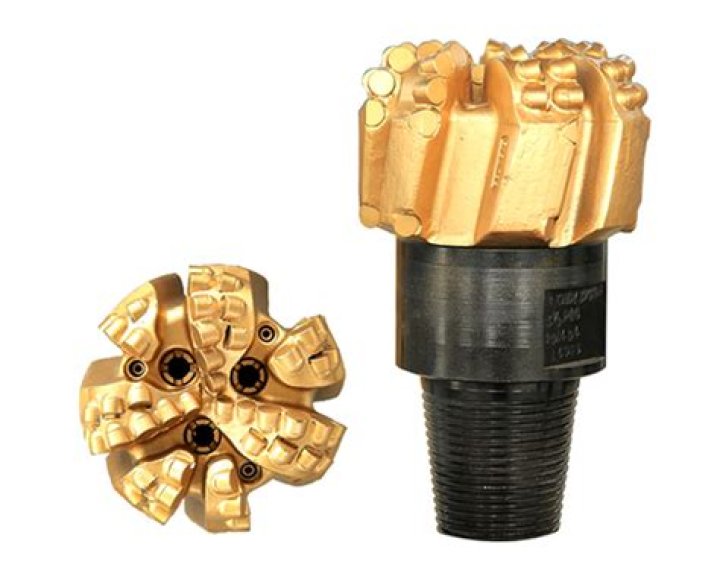

A polycrystalline diamond compact (PDC) bit is a bit that uses synthetic diamond disks, called “cutters,” to shear its way through rock with an ongoing scraping motion.
What is PDC cutter?
PDC（Polycrystalline Diamond Compact ) cutter bit inserts are sintered with selected diamond powder and tungsten carbide under high temperature and ultra-high pressure. As a general rule, large cutters (19mm to 25mm) are more aggressive than small cutters. However, they may increase torque fluctuations.
How are PDC cutters made?
PDC Cutters are made from tungsten carbide substrate and synthetic diamond grit. It is made using a combination of high temperature and high pressure with catalyst of cobalt alloy to help bond diamond and carbide during the sintering process.
What is the main advantage of PDC bits?
Here are a few reasons that drillers should consider making the change to PDC bits. PDC bits can be very cost effective. Unlike tricones, there are no moving parts on a PDC bit to wear out. The synthetic diamond facing can chip, but that PDC cutter can be extracted and new one can be put in its place.
What is polycrystalline diamond?
Polycrystalline Diamond (PCD) is diamond grit that has been fused together under high-pressure, high-temperature conditions in the presence of a catalytic metal. The extreme hardness, wear resistance, and thermal conductivity of diamond make it an ideal material for the cutting tools manufacturing.
What is PCD bit?
PCD Clore Bits Polycrystalline Diamond (PCD) Bits have a purpose designed cast matrix head with 13.3mm round PCD inserts fixed in a cutting pattern. Non-Core Bits are used for open hole drilling. They are used widely in coalfield exploration and open hole drilling to the zone of interest before core drilling commences.
What is PCD drilling?
PCD simply means Polycrystalline Diamond : PCD are normally made by sintering many micro-size single diamond crystals at high temperature and high pressure. PCD has good fracture toughness and good thermal stability, and is used in making geological drill bits. The cobalt helps bond the carbide and diamond.
What is PDC Petroleum?
Petroleum Development Consultants (PDC) is an independent consulting company specialising in oil and gas development activities. PDC staff and associates include reservoir and petroleum engineers, geophysicists, geologists, petrophysicists, chemical engineers and petroleum economists.
Who invented the PDC bit?
Entrepreneurs Ken Davis and Dusty Hicks experienced some success in South Texas in the late 1970s. The first widely applied PDC bits were developed by Drilling & Service (D&S), led by John Barr in the UK North Sea, and Stratabit led by Mahlon Dennis and Bill Mauer in the US.
What three types of natural diamonds are used in diamond bits?
Among the naturally occurring diamonds, three varieties exist: ballas, bort, and carbonado. Ballas, or shot bort, is composed of concentrically arranged, spherical masses of minute diamond crystals. Ballas is extremely hard, tough, and difficult to cleave.
How are polycrystalline diamonds made?
Polycrystalline Diamond (PCD): They are normally made by sintering many micro-size single diamond crystals at high temperature and high pressure. High-temperature brazed diamond tools: This tool is made by brazing a single layer of diamonds onto the tool via a solder at a temperature of over 900 °C.
What is a CBN insert?
The polycrystalline cubic boron nitride (CBN) inserts offer a cost-effective alternative to the diamond tools. They are compatible with standard tool holders by other, leading manufacturers. New. CCGW INSERTS. A line of inserts with a 80° cutting corner angle, and two cutting tips.
