What is OTV in Cisco?

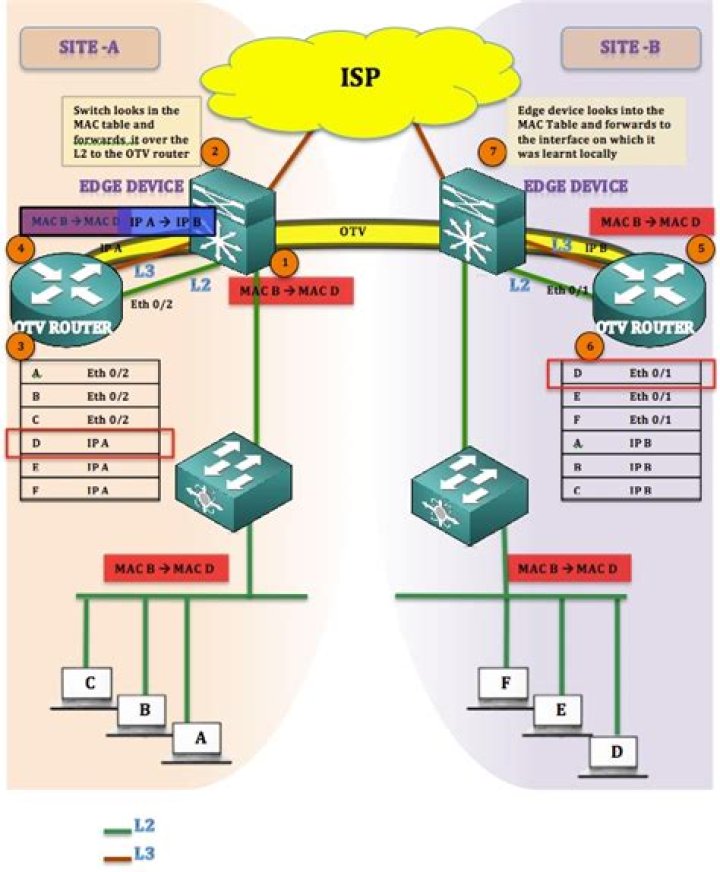

OTV is a MAC-in-IP method that extends Layer 2 connectivity across a transport network infrastructure. OTV uses MAC address-based routing and IP-encapsulated forwarding across a transport network to provide support for applications that require Layer 2 adjacency, such as clusters and virtualization.
How do I set up OTV?
High-level
- Enable the feature.
- Create and specify site VLAN.
- Configure OTV Site ID *I couldn’t configure this due to the NXOS version.
- Specify join interface *Make sure to enable IGMP v3 on the join interface*
- Specify control group *Used to dynamically discover remote neighbors*
What is OTV in ACI?
OTV is a MAC in IP technique for supporting Layer 2 VPNs to extend LANs over any transport. An edge device forwards Layer 2 frames into and out of a site over the overlay interface. There is only one authoritative edge device (AED) for all MAC unicast and multicast addresses for each given VLAN.
What is OTV site VLAN?
OTV uses a VLAN called “Site VLAN” within a site to detect and establish a Site Adjacency with other OTV edge devices. For Delta, the Site VLAN will be carried on multiple Layer 2 paths across the vPC connection on the Distr VDCs to increase the resiliency of this internal adjacency.
What is OTV protocol?
Overlay transport virtualization (OTV) is a Cisco proprietary protocol for relaying layer 2 communications between layer 3 computer networks.
Why is OTV used?
OTV uses MAC address-based routing and IP encapsulation forwarding across a network to provide support for applications that need Layer 2 adjacency. It’s an additional fabric layer that sits on top of existing network infrastructure which means it can be implemented into existing, deployed networks.
What is OTV adjacency server?
The OTV Adjacency Server feature enables you to provide unicast-only transport between edge devices when IP multicast is not available in the core network over which Overlay Transport Virtualization (OTV) runs. The remaining edge devices in the overlay network are configured to register to these adjacency servers.
Is OTV supported on Nexus 9000?
The Nexus 9000 switches run NX-OS same as Nexus 7000 and banking on key features like ACI (Application Centric Infrastructure) for allowing the switches to participate in the SDN framework….NEXUS 7K switches vs NEXUS 9K switches.
| PARAMETERS | NEXUS 7K | NEXUS 9K |
|---|---|---|
| OTV and LISP | Supported | Not Supported |
Does Vxlan replace OTV?
Well VXLAN is extending the VLANs or layer 2 traffic within the datacenter while OTV is the extension of the layer 2 Traffic across the datacenter. Cisco is using the concept of VXLAN in ACI infrastructure for the datacenter environment and also used in the SDA infrastructure in Campus or Enterprise networks.
Is OTV Cisco proprietary?
Why do we need OTV?
OTV stands for Overlay Transport Virtualization. This technology allows us to extend a layer 2 ethernet domain across any layer 3 transport network. OTV allows these host to believe that they are part of the same layer 2 domain. Frames sent from Host A to B will have a destination MAC of 0000.0000.
What is OTV rust server?
OTV Rust server set for reset, returning with more RP in ‘Wild West’ setting July 15. Originally intended to provide a vanilla Rust experience focused around PvP, it will become an experience targeted at both PvP-centric players and those who prefer to roleplay later this week.
