What is NFPA Labelling system?
NFPA 704 is a labeling system used to identify hazardous materials. It is published by the National Fire Protection Association (NFPA). NFPA diamond labels can be used on any type of chemical container to alert people to the specific hazards present.
What hazard ranking system is used on NFPA labels?
NFPA 704 rating system is a standard system developed by the U.S.-based National Fire Protection Association (NFPA) for indicating the health, flammability, reactivity and special hazards for many hazardous chemicals through the use of the NFPA 704 Diamond.
How do you read a NFPA label?
Page 1
- The NFPA diamond label is used to warn firefighters and other emergency responders of the hazards they would be exposed to in a fire or chemical spill situation.
- Colors indicate the type of hazard.
- 0 = Materials that offer no hazard beyond that of ordinary combustible materials.
- Flammability Hazard.
Are NFPA Hazard labels still used?
Their answer: Yes, OSHA will continue to allow NFPA and/or HMIS rating systems on labels and SDSs as supplemental information. Or, employers can continue to use their current labeling system as long as all of the required information is immediately available to employees when they are in their work areas.
Which number on an NFPA 704 label indicates the most severe hazard?
Number System: NFPA Rating and OSHA’s Classification System 0-4 0-least hazardous 4-most hazardous 1-4 1-most severe hazard 4-least severe hazard • The Hazard category numbers are NOT required to be on labels but are required on SDSs in Section 2.
Is NFPA 704 required?
A: The NFPA 704 standard is a voluntary standard. NFPA 704 signs are required when another federal, state or local regulation or code requires their use. Some of the more widely adopted and used NFPA codes that require 704 signs for specific occupancies, storage and hazardous materials include: NFPA 1 – Fire Code.
What are the five NFPA hazard categories?
NATIONAL FIRE PROTECTION ASSOCIATION (NFPA) RATING SYSTEM Chemical substances are rated for degree of HEALTH RISK (blue diamond), FLAMMABILITY (red diamond), REACTIVITY (yellow diamond), on a scale of 0 to 4.
Which section of an NFPA 704 label indicates health hazards?

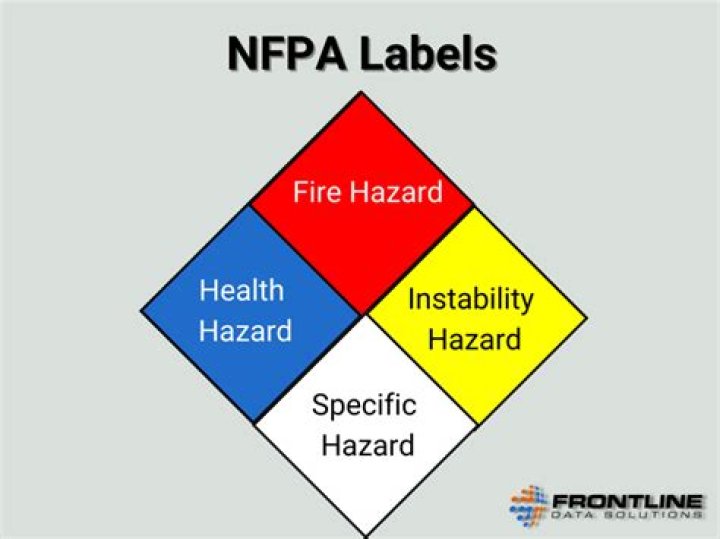

The system uses a color-coded diamond with four quadrants in which numbers are used in the upper three quadrants to signal the degree of health hazard (blue), flammability hazard (red), and reactivity hazard (yellow). The bottom quadrant is used to indicate special hazards.
What is a 704 placard?
NFPA 704 Placards are required for any business or commercial building that has a quantity of hazardous materials equal to or greater than a total weight of 500 pounds solid, 55 gallons liquid, 200 cubic feet of gas or where a radioactive product is used, stored or handled.
What does the white diamond on the NFPA 704 symbol indicate?
The white diamond, appearing at the bottom of the label, conveys Special Hazard information. This information is conveyed by use of symbols that represent the special hazard.
What do each of the NFPA 704 Fire diamond’s flammability ratings 0 4 mean?
1-Ignites after considerable preheating. 2-Ignites if moderately heated. 3-Can be ignited at all normal temperatures. 4-Very flammable gases or very volatile flammable liquids.
What are the 6 GHS label requirements?
All labels are required to have pictograms, a signal word, hazard and precautionary statements, the product identifier, and supplier identification.
