What is Littrow condition?
The Littrow configuration is a special geometry in which the blaze angle is chosen such that diffraction angle and incidence angle are identical. For a reflection grating, this means that the diffracted beam is back-reflected into the direction of the incident beam (blue beam in picture).
What is the grating equation?
This is known as the DIFFRACTION GRATING EQUATION. d = \frac {1} { N }, where N is the grating constant, and it is the number of lines per unit length. Also, n is the order of grating, which is a positive integer, representing the repetition of the spectrum.
What are the requirements of good grating?
The key parameters to consider when selecting a grating for a given application are the required spectral resolution (in order to identify efficiently chemical signatures or monitor subtle spectral features behaviour changes), the wavelength range of interest, the simultaneous bandpass (the wavelength range projected …

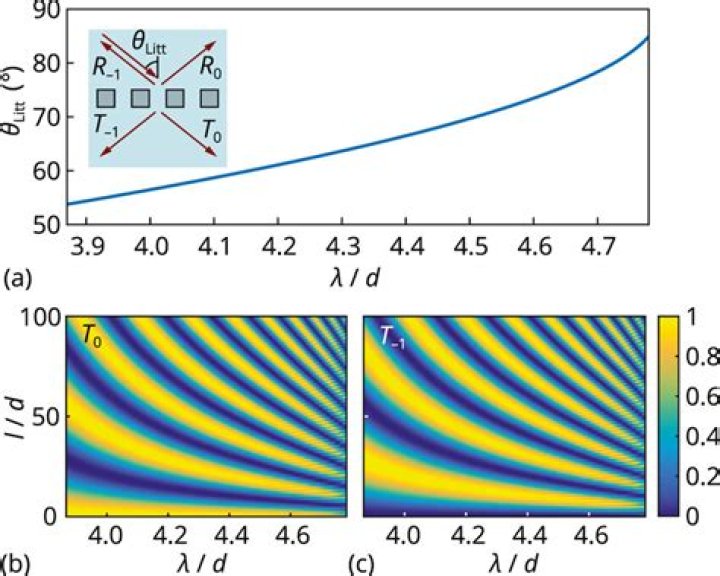

What is Littrow angle?
The Littrow configuration refers to a specific geometry for blazed gratings and plays an important role in monochromators and spectrometers. It is the angle at which the grating efficiency is the highest. In this configuration, the angle of incidence of the incoming and diffracted light are the same, = , and > 0 so. (6 …
What is transmission diffraction grating?
Transmission gratings are diffraction gratings which are used in transmission. This is in contrast to the more common reflection gratings, which reflect all incident light, as far it is not absorbed or scattered. Transmission gratings can be volume Bragg gratings or surface relief gratings.
What is the grating period?
A grating is called an SPG when the period of the grating is less than the optical wavelength, which is on the order of 1.3–1.6 μm. For typical SPG, the period of the grating is Λ = 0.5 μm. In this grating structure, the interaction of light takes place with a periodic structure, as shown in Fig.
What is grating spectrometer?
An instrument that uses a diffraction grating to disperse light into a spectrum. Gratings may be placed at the focus of a telescope (a focal-plane spectrometer) or in front of a telescope (an objective spectrometer). Grating spectrometers are used for spectroscopy at wavelengths from X-rays to the far infrared.
Why grating is an important element in WDM system?
A grating is an important element in WDM systems for combining and separating individual wavelengths. This variation in the material has the property of reflecting or transmitting light in a certain direction depending on the wavelength.
What is grating element of a grating?
A grating is an arrangement consisting of a large number of parallel slits of same width and separated by equal opaque spaces. (a+b) is called grating element or grating constant. It can be seen that distance between two consecutive slits is grating element.
What is a transmission diffraction grating?
What is grating vector?
Grating Vector: A very useful tool for evaluating the properties of gratings is the grating vector. It expresses the. direction and spacing of the grating planes and the relation between the propagation vectors that are incident and diffracted from the grating.
