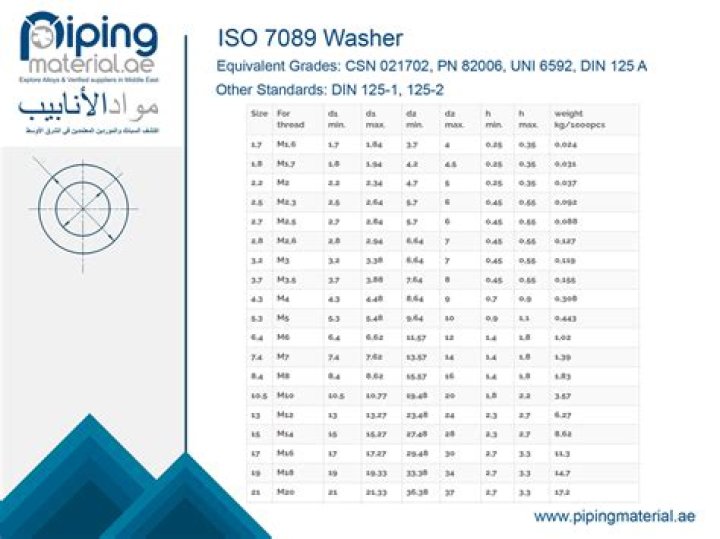

What is ISO 7089?
Flat washers protect surfaces by evenly distributing torque when a bolt or screw is tightened. They prevent corrosion between a steel screw and an aluminum surface. A nylon washer can be placed under a machine screw to reduce noise and abrasion and offer electrical insulation.
What does DIN 125 mean?
DIN 125-1. Product grade A washers – with a hardness up to 250 HV designed for use with hexagon head bolts and nuts. Withdrawn.
Are washers standard for 2016?
1. The Washer will be according to IS 2016. 2. Material High grade carbon/alloy steel, Mild steel & stainless steel etc.
What is HV washer?
„HV“ is the marking of a screw assembly in steel construc- tions with high-strength screws in strength class 10.9. This type of connection can be preloaded (SLV) or implemented with dowel screws (SLP) or both (SLVP). Preloading the connection is necessary in particular with dynamic loads in the screw’s lengthways axis.
Is 3063 spring washer hardness?
The spring lock washer shall be compressed between hardened, flat ground washers ( with a hardness of not less than 60 HRC ) for two minutes using the compression loads specified in Tables 2A and 2B.
What does DIN EN ISO mean?
Thus, the German version of the standard is called DIN EN ISO 4032-M12-8. = DIN) in Germany. Furthermore, there are EN standards at European level and ISO standards at international level which are published by the International Organization for Standardization.
What is DIN screw?
DIN stands for “Deutsches Institut für Normung“, meaning “German institute for standardisation”. DIN standards are still valid for products having no ISO or EN standards. …
Is there a 2016 washer for 1967?
0.1 This Indian Standard (First Revision ) was adopted by the Indian Standards Institution on 9 November 1967, after the draft finalized by the Screw Threads and Fasteners Sectional Committee had ~een approved by the Mechanical Engineering Division Council. the decision taken bythe ISO/TO 2 Bolts, Nuts and Accessories.
Is standard for taper washer?
Taper washers are available in stock as per Indian Standard 5372 (IS 5372-1975)/Din 434 (For Channels) & IS 5374 – 1975 (For I Beams) in materials like Mild Steel (M.S.) & S.S. 304 grade.
Do washers have grades?
Flat washers do not have a specific grade as traditional fasteners such as Grade 5 or Grade 8 bolts do however there are two common types of steel used.
