What is Hall effect electronics?
The Hall effect is the production of a voltage difference (the Hall voltage) across an electrical conductor that is transverse to an electric current in the conductor and to an applied magnetic field perpendicular to the current. It was discovered by Edwin Hall in 1879.
What is the principle of Hall effect experiment?

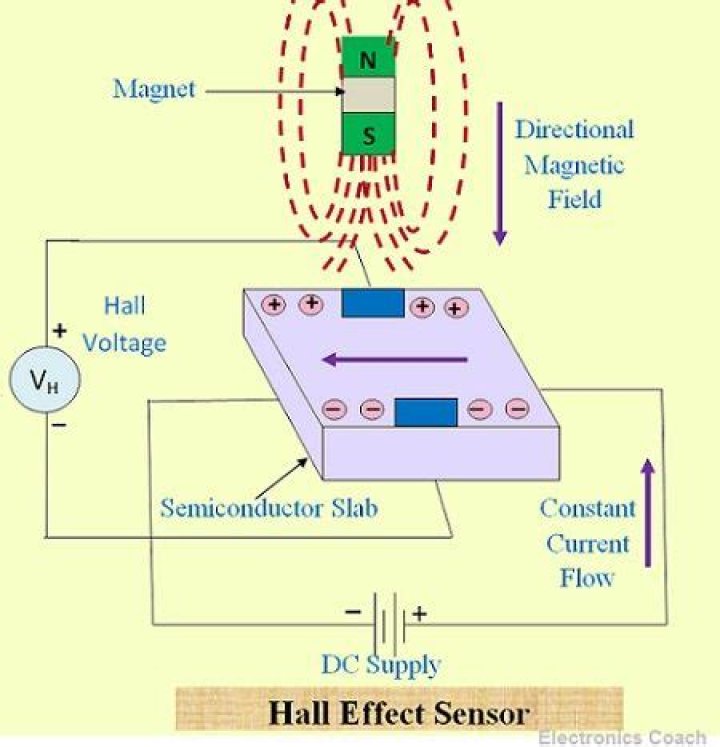

Principle of Hall Effect. The principle of Hall Effect states that when a current-carrying conductor or a semiconductor is introduced to a perpendicular magnetic field, a voltage can be measured at the right angle to the current path. This effect of obtaining a measurable voltage is known as the Hall Effect.
Which type of semiconductor is used in Hall effect experiment?
In the p-type semiconductor, the electric field is primarily produced due to the positively charged holes. So the hall voltage produced in the p-type semiconductor is positive.
Which type of material is used in the Hall effect experiment?
When a magnetic field is applied perpendicular to the direction of flow of charge carriers, in a semiconductor material, charge carriers experience a force in transverse to the direction of applied magnetic field and carriers flow. This effect is known as Hall effect.
Can Hall effect be observed in metal?
The Hall effect exists in metals, where the low resistance to electrical current would make Joule heating be negligible5. This charge accumulation can be detected as an open-circuit voltage transverse to the metal. The voltage is proportional to the field strength, as well as to light intensity.
What is current density in Hall effect?
The current density Jx is the charge density nq times the drift velocity vx. In other words. Ix = Jxwt = nqvxwt . (1) The current Ix is caused by the application of an electric field along the length of the conductor.
Who found Hall effect?
The Hall-effect principle is named for physicist Edwin Hall. In 1879 he discovered that when a conductor or semiconductor with current flowing in one direction was introduced perpendicular to a magnetic field a voltage could be measured at right angles to the current path.
Which law is used in Hall effect?
The Hall electromotive force (emf) VH = E Hb = RHj/d is measured between the electrodes. Since the sense of the Hall emf is reversed when the direction of the magnetic field is reversed, the Hall effect is considered an odd galvanomagnetic phenomenon.
What is Hall coefficient RH?
The Hall coefficient formula quantifies the strength of the Hall effect. The Hall coefficient is defined as. RH = V * t / (I * B) , where.
What is the SI unit of Hall coefficient?
The two most widely used units for the Hall coefficients are SI units, m3/A-sec = m3/C, and the hybrid unit Ohm-cm/G (which combines the practical quantities volt and amp with the cgs quantities centimeter and Gauss).
Why magnetic field is used in Hall effect?
When a magnetic field is applied perpendicular to the flow of current, the field causes resistance in the current. This movement of electrons results in a weak but measurable potential difference, or voltage, perpendicular both to the current flow and the applied magnetic field. …
