What is glass performance?
Glass performance data essentially covers the issues of solar heat gain, thermal heat loss, daylight and glare, condensation and fading and sound control.
What is the R-value of glass?
A single pane of glass has an R-value of about 1. Homeowners often double this by adding a single-pane storm window. These insulation ratings compare to blown-in cellulose insulation with an R-value of 3.6 per inch of insulation.
What is the U value of normal glass?
What is the minimum U-Value and Window Energy Rating for Windows?

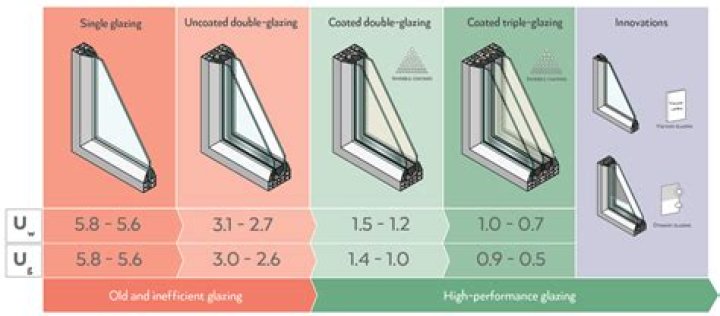

| Property Material | Insulation | Approximate U-Value |
|---|---|---|
| Typical Floor | With Insulation | 0.7 |
| Typical Floor | Without Insulation | 0.9 |
| Old single glazed windows. | None | 5.8-5.9 |
| Old Double Glazed windows with air space between glass. | None | 2.8-3.0 |
What is SHGC value?
Solar Heat Gain Coefficient (SHGC) The SHGC rating reflects how much solar heat gets inside the home once it has reached the glass. The SHGC rating is measured between 0 and 1, with lower SHGC ratings meaning the glass allows less solar heat from entering the home.
What is high performance glass for a window?
High performance glass is most commonly applied to glass that provides (additional) energy efficiency. However, the phrase is technically broad enough that impact resistant glass – both security glazing and safety glazing – and glass with electrically charged interlayers can be considered high performance glass.
What are the various types of glasses What are qualities of high performance glasses?
Types of High Performance Glass Available in the Market:
- Solar Control Glass: Solar control glass is a special oxide coated glass which transfers less amount of heat in the building and also helps in reducing the glare of light entering.
- Low E Glass:
- Solar Control – Low E Glass:
Are windows poor insulators?
Single-pane glass may keep out the weather, but it does little to insulate against heat loss or reflect the sun’s heat—its performance is about R-1 (i.e. RSI-0.18). Triple-pane insulating glass consists of three panes of glass and two low-e coatings separated by two air spaces.
Are glass walls energy-efficient?
Insulated glass walls are a worthy investment that maintain comfortable interiors while decreasing energy costs in the long run. Energy efficient walls ensure year-round performance while decreasing energy costs and enhancing your indoor/outdoor lifestyle.
What is SC value in glass?
Shading coefficient (SC) is a measure of thermal performance of a glass unit (panel or window) in a building. It is the ratio of solar gain (due to direct sunlight) passing through a glass unit to the solar energy which passes through 3mm Clear Float Glass.
Is U-value better higher or lower?
U-values measure how effective a material is an insulator. The lower the U-value is, the better the material is as a heat insulator. Very broadly, the better (i.e. lower) the U-value of a buildings fabric, the less energy is required to maintain comfortable conditions inside the building.
Is higher SHGC better?
The lower the SHGC, the less solar heat it transmits and the greater its shading ability. A product with a high SHGC rating is more effective at collecting solar heat during the winter. A product with a low SHGC rating is more effective at reducing cooling loads during the summer by blocking heat gain from the sun.
Is higher SHGC value better?
What is SHGC? SHGC is short for solar heat gain coefficient, a number that represents the amount of solar radiation through a window. It’s measured between 0 and 1; a lower number means less solar heat transfer. Though low glass-only SHGC is good, it’s better to have a lower whole window SHGC for optimal heat balance.
