What is general tolerance in engineering?
Engineering tolerance is the permissible limit or limits of variation in: a physical dimension; a measured value or physical property of a material, manufactured object, system, or service; in mechanical engineering the space between a bolt and a nut or a hole, etc.
What is tolerance range in engineering?
Tolerance is a range of how far a true measurement can range from what is intended. Physical tolerances specify the deviation from a specific dimension. Any dimension between any two points can have a tolerance. Limits are a type of tolerance that specifies a different lower and upper deviation.
What is tolerance in engineering example?
As per ASME, Tolerance in engineering is the total amount a specific dimension is permitted to vary from basic value. For example, If a given dimension is 25± 0.5. Its upper and lower tolerance value is 0.5 mm. Tolerance stack-up analysis is used to ensure parts assembly even in the worst conditions.

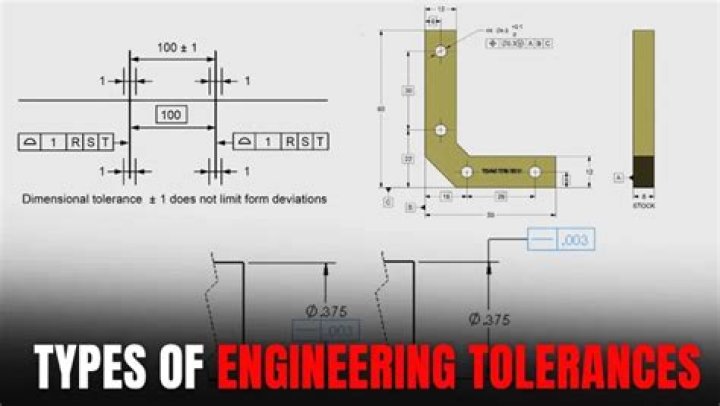

What is tolerance in engineering drawing?
The sizes of parts and overall sizes of assemblies are conveyed by dimensions placed on the drawing. The difference between the acceptable maximum and minimum dimensions given for a hole, shaft, or other feature is known as the tolerance.
What is tolerance in engineering and its types?
A tolerance is an acceptable amount of dimensional variation that will still allow an object to function correctly. Three basic tolerances that occur most often on working drawings are: limit dimensions, unilateral, and bilateral tolerances.
What is H7 h6 tolerance?
Hole and shaft basis For example, in H7/h6 (a commonly-used fit) H7 represents the tolerance range of the hole and h6 represents the tolerance range of the shaft. These codes can be used by machinists or engineers to quickly identify the upper and lower size limits for either the hole or shaft.
How do you calculate tolerance in engineering?
Tolerance equals the difference between lower and upper limit dimensions. Example; for 0.500-0.506 inch the tolerance would be 0.006 inch.
What is tolerance in civil engineering?
Tolerances in construction are generally a variation in a dimension, construction limit, or physical char- acteristic of a material. They are a practical variation related to the function of the material or finished work and commonly accepted standards of the construction industry.
What is H7 hole tolerance?
H7 (hole) tolerance range = +0.000 mm to +0.025 mm. p6 (shaft) tolerance range = +0.042 mm to +0.026 mm. Potential interference will be between −0.001 mm and −0.042 mm.
