What is front panel audio header?
The front panel audio header on an Intel® Desktop Board lets you connect to a front panel audio module built into a system chassis. See the header pinout configuration below for connecting a chassis with Intel® High Definition Audio (Intel® HD Audio) or AC’97 (Audio Codec ’97) audio.
Are all front panel connectors the same?
Afaik, there’s still no standard connectors for the front panel. Most of the time motherboard manufacturers share the same front panel pin layouts and some of them don’t. This is why case makers give you separate wires for each connector for the front panel to adopt to different pin layouts.
What is front panel connectors?

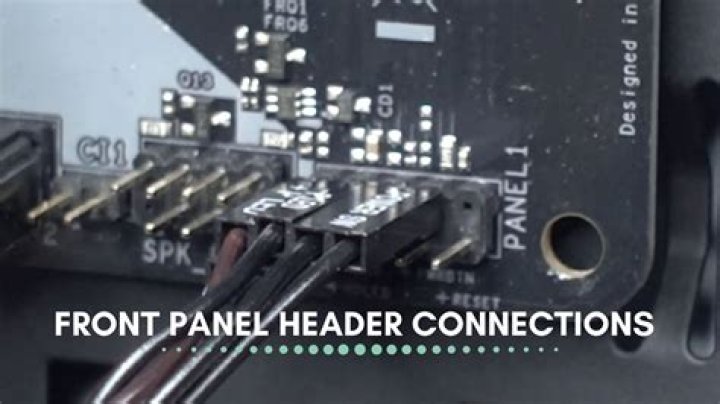

The Front Panel Connectors, also known as the Front Panel Header or FPanel, is a block of connectors on a motherboard that control the power on, power reset, beep code speaker and the LED light indicators on your PC case/chassis. The cables that connect to the motherboard come from the PC case.
How do you test front panel audio connectors?
To check your default audio device:
- 1) Right click the volume icon, then click Sounds.
- 2) If you connect your headphone or your speakers to the front audio jack, click the Playback tab.
- 3) Right click your audio device, then click Set as Default Device.
- 4) Check to see if you’re able to use your audio device.
Can USB 2.0 Connect to 3.0 header?
Yes, USB 3.0 backwards is compatible—meaning it’s designed to work with older USB versions including USB 2.0 and USB 1.1. You can plug a USB 2.0 device into a USB 3.0 port and it will always work, but it will only run at the speed of the USB 2.0 technology.
What is a USB header?
USB headers are groups of pins on a motherboard, into which one can plug a special cable to provide USB ports on a computer chassis. In the case of USB 2, such headers will usually appear in a 2×5 grid with one corner pin missing (9 total pins).
Do I need to connect front panel audio?
Nope , you only plug it in if you’re going to use it really.
What are USB headers?
USB header connectors on a computer’s motherboard provide a USB signal for the ports located on the front or side panel of desktop and laptop computer cases. A typical header will have nine pins, enough to provide a full USB four-wire connection to two different ports.
Why are front panel connectors separate?
Unlike internal USB, Firewire, or IDE connectors, though, front panel pins aren’t arranged according to a common standard. That means that instead of being able to connect all 12 pins with a single cable and jumper block, separate wires and connectors must be used for each function.
