What is Fortinet access point?

FortiAP Thin Wireless Access Points provide Integrated, Secure Wireless LAN Access for your Enterprise. Enabling simple, cost-effective Wireless Network Access, FortiAPs are an ideal solution for extending your FortiGate Connected UTM.

How do I set up a Fortinet access point?

To add and configure the discovered AP unit – GUI

  1. Go to WiFi & Switch Controller > Managed FortiAPs. This configuration also applies to local WiFi radio on FortiWiFi models.
  2. Select the FortiAP unit from the list and edit it.
  3. Optionally, enter a Name.
  4. Select Authorize.
  5. Select a FortiAP Profile.
  6. Select OK.

What is Wi-Fi Fortinet?

Wireless Access Points can be added to any network to provide Wi-Fi access to employees and guests alike. Fortinet’s Wireless LAN equipment leverages Security-driven Networking to provide secure wireless access for the enterprise LAN edge.

What is FortiAPs?

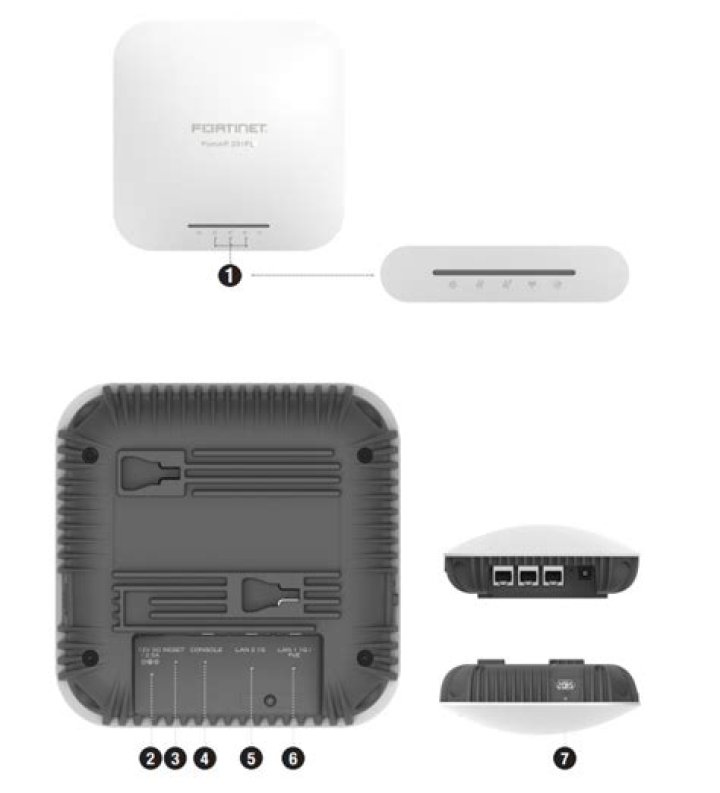

FortiAP devices are thin wireless access points (AP) supporting the latest Wi-Fi technologies (WiFi-5 and WiFi-6) , and the demand for plug and play deployment. FortiAP devices come in various form factors (desktop, indoor, outdoor, or wall jack).

What is the use of FortiManager?

FortiManager provides automation-driven centralized management of your Fortinet devices from a single console. This enables full administration and visibility of your network devices through streamlined provisioning and innovative automation tools.

What does the FortiDeploy service do when used with FortiAP?

The FortiDeploy feature allows for simplified import and at-scale provisioning of FortiGate next-generation firewalls (NGFWs) and FortiAP access points (APs).

Can I use FortiAP without FortiGate?

FortiCloud-managed FortiAP WiFi. In this example, you use FortiCloud to configure a single FortiAP-221C, creating a working WiFi network without a FortiGate. You will create a simple network that uses WPA-Personal authentication. You can register for a free FortiCloud account at

How can I change my IP in FortiAP?

FortiAP Configuration Tips

  1. Connect the FortiAP unit to a separate private switch or hub or directly connect it to your management computer via a cross-over cable.
  2. Change your management computer’s IP address to 192.168.1.3.
  3. Telnet to IP address 192.168.1.2.
  4. Login with username: admin and no password.

Why would an organization use Capwap?

The IETF developed CAPWAP with three goals in mind: to centralize authentication and policy enforcement functions in wireless networks, to shift higher-level protocol processing away from access points and to provide an extensible protocol that could be used with various types of access points (APs).

How does FortiAP connect to FortiGate?

Method 2: Connecting through the FortiGate unit

  1. Connect the Ethernet port on the leaf FortiAP to the FortiGate network interface that you configured for FortiAPs.
  2. On the FortiGate unit, go to WiFi & Switch Controller > Managed FortiAPs.
  3. Select the discovered FortiAP unit and authorize it.
