What is flux density in magnetic circuit?
13.3 Equations of Magnetism. The magnetic flux density or magnetic induction is the number of lines of force passing through a unit area of material, B. The unit of magnetic induction is the tesla (T).
What is intrinsic flux density?
Flux density produced by the magnet alone is called intrinsic induction, magnetization (M) or polarization (J) and can be calculated from the normal curve data as J = B – H. (Remember that H is negative in the second quadrant so its value is added to B).
What does N42 magnet mean?
What does grade n42 magnet mean? The grade N42 means a neodymium magnet has a maximum energy product of 42 MGOe. It refers to the maximum magnetic energy that the material can be stored. Generally speaking, the higher the grade, the stronger the magnet.
What is magnetic flux density class 12?
Magnetic Flux Density is amount of magnetic flux through unit area taken perpendicular to direction of magnetic flux. Flux Density (B) is related to Magnetic Field (H) by B=μH. It is measured in Webers per square meter equivalent to Teslas [T].
What is flux density formula?
Flux density is simply the total flux divided by the cross sectional area of the part through which it flows – B = Φ / Ae teslas. Thus 1 weber per square metre = 1 tesla. Flux density is related to field strength via the permeability. B = μ × H.
What is intrinsic flux?
The vector difference between the magnetic flux density at a given point and the magnetic flux density which would exist there, for the same magnetic field strength, if the point were in a vacuum. Also known as intensity of magnetization; intrinsic flux density; magnetic polarization.

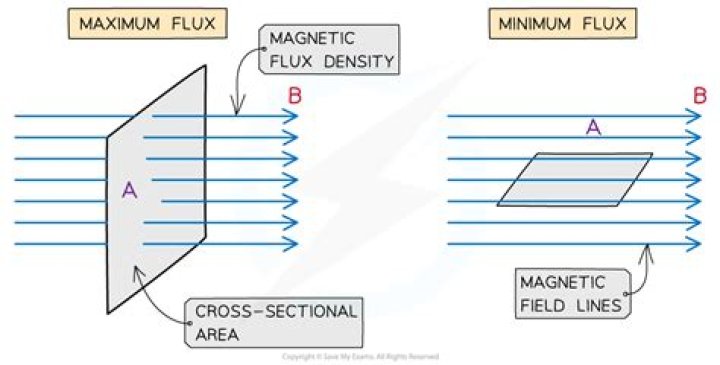

What is magnetic flux in physics class 12?
Magnetic flux: The total number of magnetic field lines passing through a given area normal to it is called magnetic flux. Mathematically it is represented by ϕ and defined as the dot product of magnetic field vector and area vector i.e. given by. ϕ=→B. →A.
What is magnetic flux density Class 8?
