What is fatigue stress ratio?
Fatigue stress ratio R, which is the minimum divided by the maximum fatigue stress: R = σmin/σmax. Fatigue tests on materials are initially performed for simple cyclic stress loading conditions involving a constant load cycle repeated many times until failure.
What is fatigue strength formula?

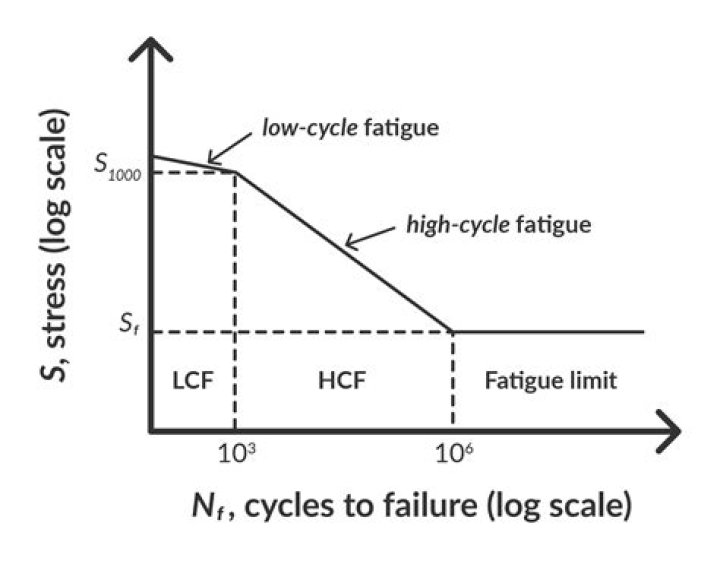

Measurement of fatigue strength The S−N diagram is the most widely used concept when calculating fatigue strength. It is a graph that plots the constant cyclic stress of amplitude S applied to a material specimen against the number of loading cycles N the specimen can withstand before eventually failing.
How is stress ratio calculated?
The stress ratio R is usually defined as minimum stress value divided by maximum stress value, which leads to values between -∞ and +1. Using this definition R = 0 can be used for pulsating loads between zero and a positive or a negative value. For alternating load R = -1 and for constant load R = +1.
What is the approximate ratio of fatigue strength to the tensile strength?
What is the approximate ratio of fatigue strength to the tensile strength? Explanation: Fatigue strength is roughly half of the tensile strength. Thus the ratio is 1:2.
How do you calculate fatigue?
An estimate of the fatigue life of a component can be made using a crack growth equation by summing up the width of each increment of crack growth for each loading cycle. Safety or scatter factors are applied to the calculated life to account for any uncertainty and variability associated with fatigue.
What is fatigue strength coefficient?
Stress = K (2N)c. where, Stress corresponds to the stress amplitude, N is the number of reversals (so 2N is the number of cycles), K is the fatigue strength coefficient (For most metals, K is equal to the true fracture strength) and c is an fatigue strength exponent (typically between -0.5 and -0.12).
What is R value in fatigue testing?
There are two general types of fatigue tests conducted. One test focuses on the nominal stress required to cause a fatigue failure in some number of cycles. The amplitude is express as the R ratio value, which is the minimum peak stress divided by the maximum peak stress. (R=σmin/σmax).
When the stress ratio become more positive the fatigue limit?
Explanation: As the stress ratio is increasing, it means stress is becoming more positive and load reversing is less severe. (It is not complete tensile/compressive cycle but shifted towards one end). Hence, the fatigue limit increases.
What factors affect fatigue strength?
8 Factors Affecting Fatigue Strength Of Metal Materials
- Effect of stress concentration.
- The influence of size factor.
- Influence of surface processing state.
- The impact of loading experience.
- Influence of chemical composition.
- Effect of heat treatment on Microstructure.
- Influence of inclusions.
Is fatigue strength the same as fatigue limit?
Fatigue limit, denoted by Sf, is defined as the value of stress at which Nf (number of cycles at which failure occurs) becomes very large. The difference between fatigue strength and fatigue limit is in the number of cycles. It is considerably higher with fatigue limit.
