What is difference between single and double shear stress?
Single shear means a cross section having unbalanced force on its either side and it is ineffective to take that effective load,then it fails in single shear. For double shear an unbalanced load acting on it’s both side and whole section is failed is called double or punching shear.
What is double shear stress?
Definition of double shear : simultaneous shear across two usually parallel planes (as when a rivet passes through three thicknesses of metal)
How do you calculate double shear stress on a pin?
Bolt or Pin In Double Shear Equation and Calculator
- Shear Stress Equation Double Shear. Shear Stress Average = Applied Force / Area. or.
- Bearing Stress Equation. Bearing Area Stress for t Plate and Bolt/Pin. Bt = F / (2 t d)
- Factor of Safety. Factor of Safety = F.S = ultimate stress / allowable stress. Therefore:
What are the advantages of double shear over single shear?
Originally Answered: What are the advantages of a single shear over a double shear? Double shear allows you reduce material used, maintain alignment (resists unbalanced loading), and is much easier to design with adequate safety factor.
What is the difference between normal stress and shear stress?
When a force acts perpendicular (or “normal”) to the surface of an object, it exerts a normal stress. When a force acts parallel to the surface of an object, it exerts a shear stress.
What is the difference between shear stress and bearing stress?
Shear Stress For bolted joints without a preload shear, stress is calculated like bearing stress: force over area. Like bearing stress, it is also an average stress and the maximum shear will be higher. If a bolted joint has no separation or clearance, a direct shear situation—shear without bending—can occur.
What does single shear mean?
Definition of single shear : shear along one surface only.
How do you know if it is a double shear?

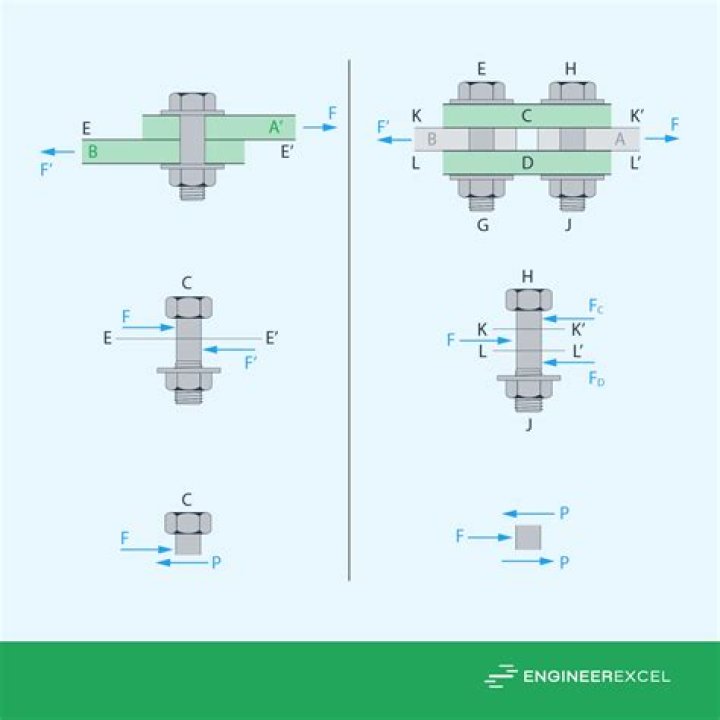

Double shear is where there are two plates sandwiching a single plate, with pins going through all three. In this case there are two shear planes.
What is a single shear?
What is meant by single shear and double shear of riveted joint?
The average shear stress in the plane is τave= F/A. This joint is said to be in single shear. If the plates, which are connected by a rivet as shown in the following figure, are subjected to tension forces, shear stresses will develop in the rivet. This joint is said to be in double shear.
Why double shear load is not exactly twice than that of single shear?
1) a rivet in double shear has twice the shear area compared to single shear. This is simply because you have two shear load paths for the load to transfer from. 2) assume rivets have zero friction force due to clampup.
